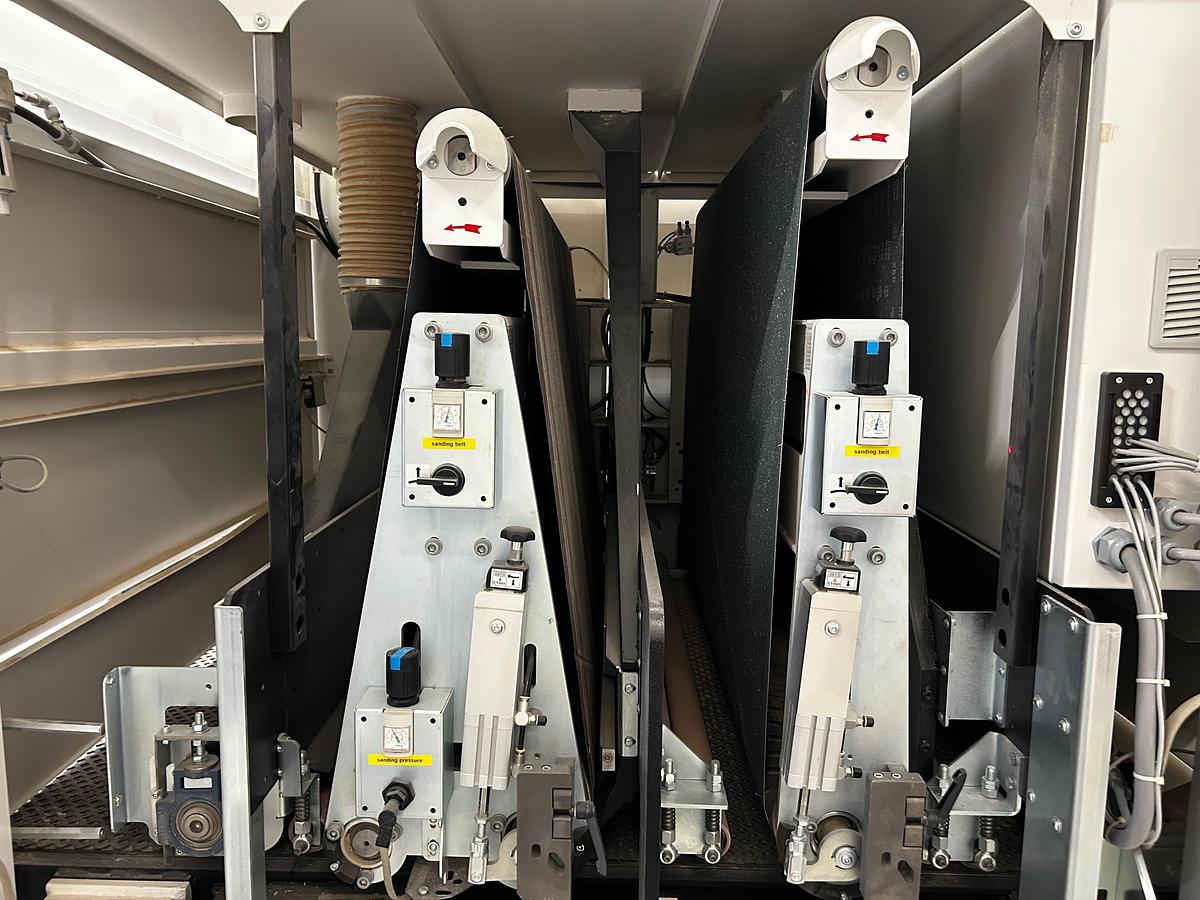

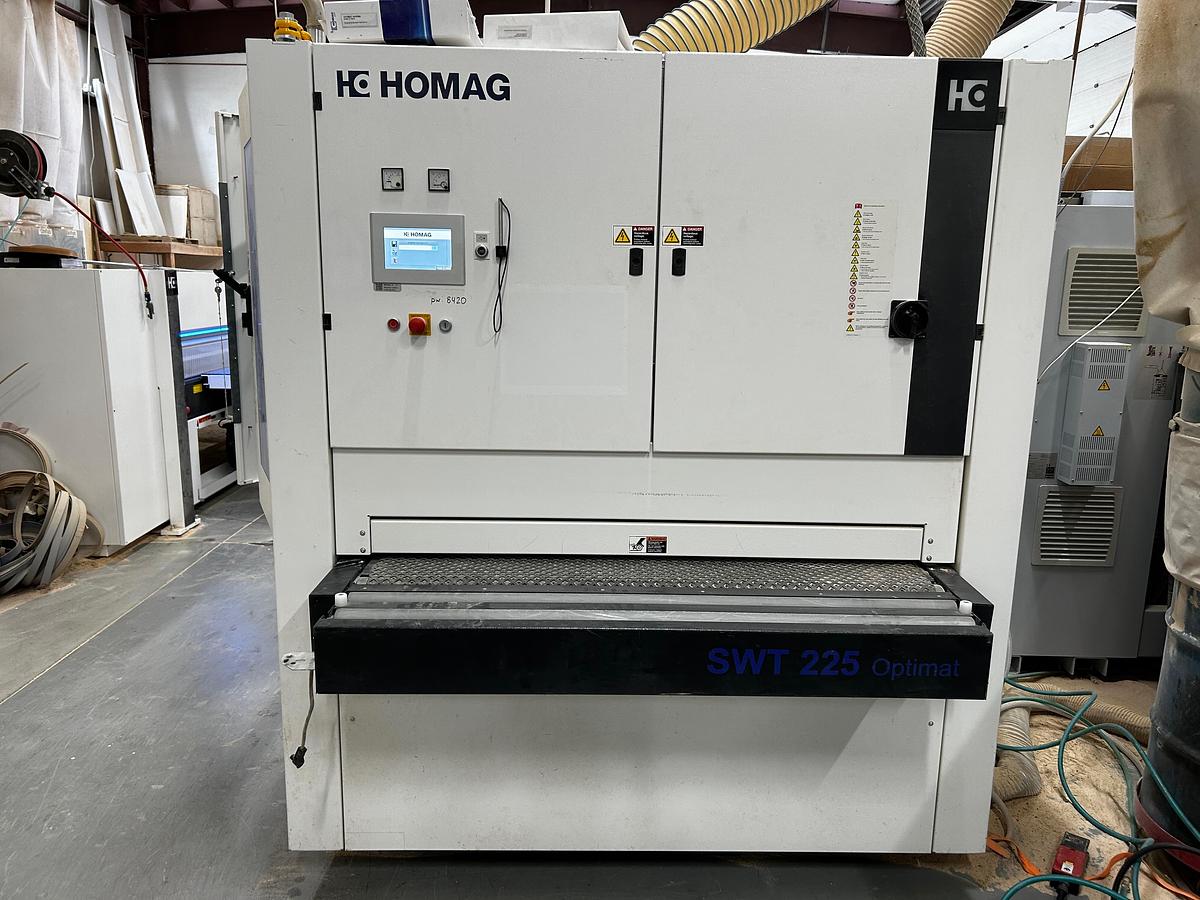

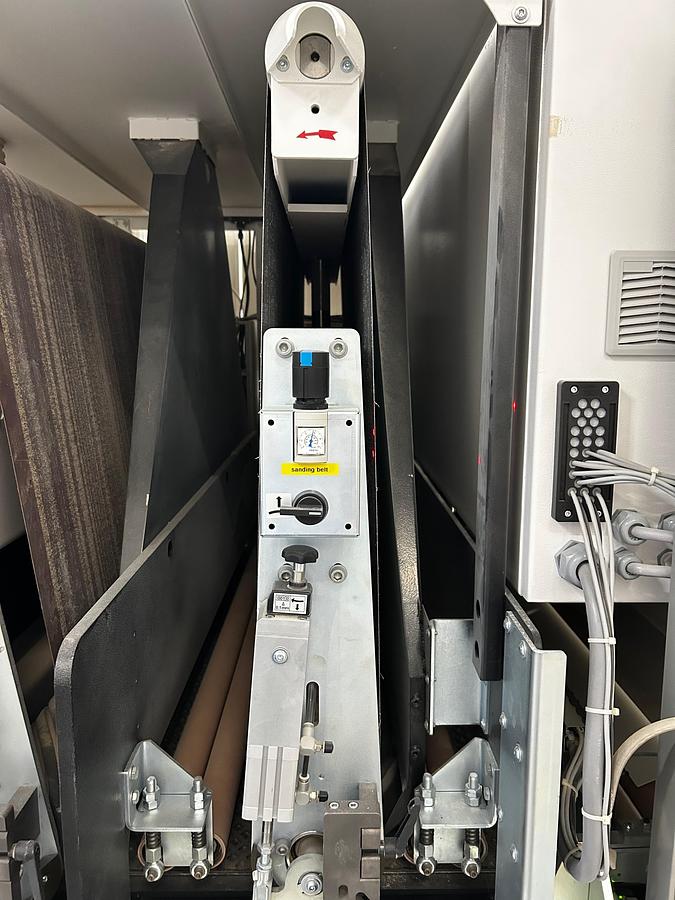

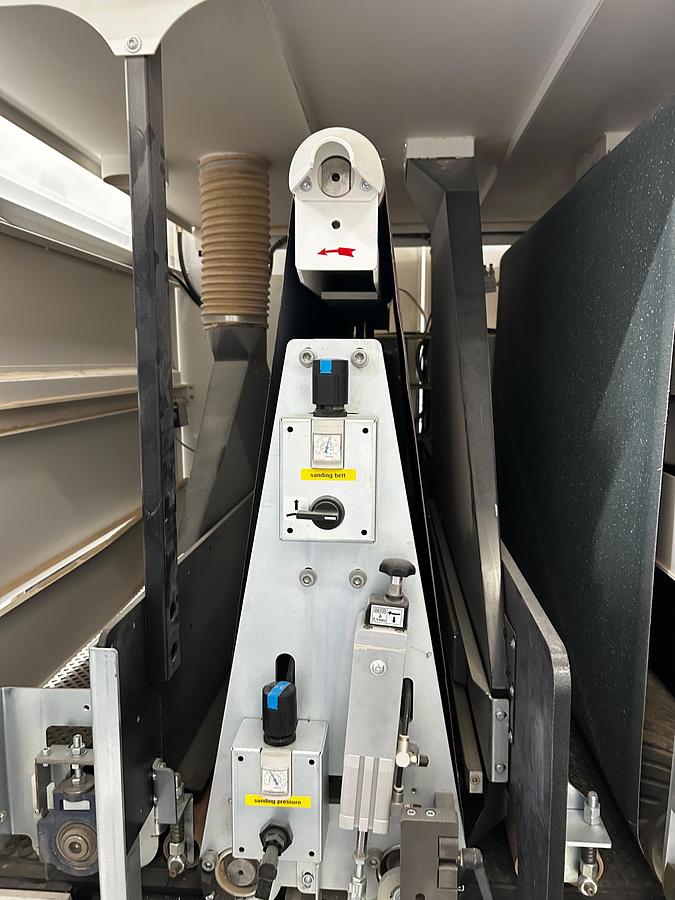

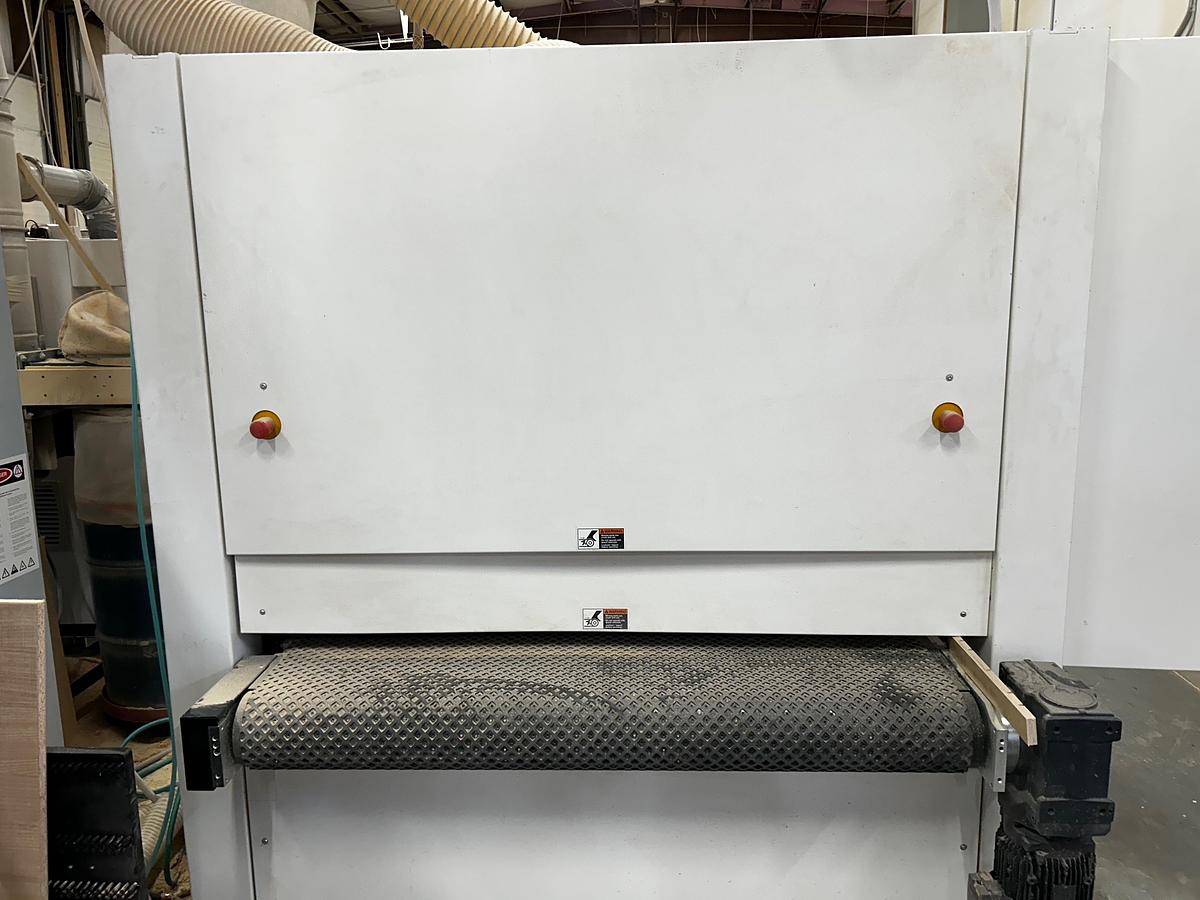

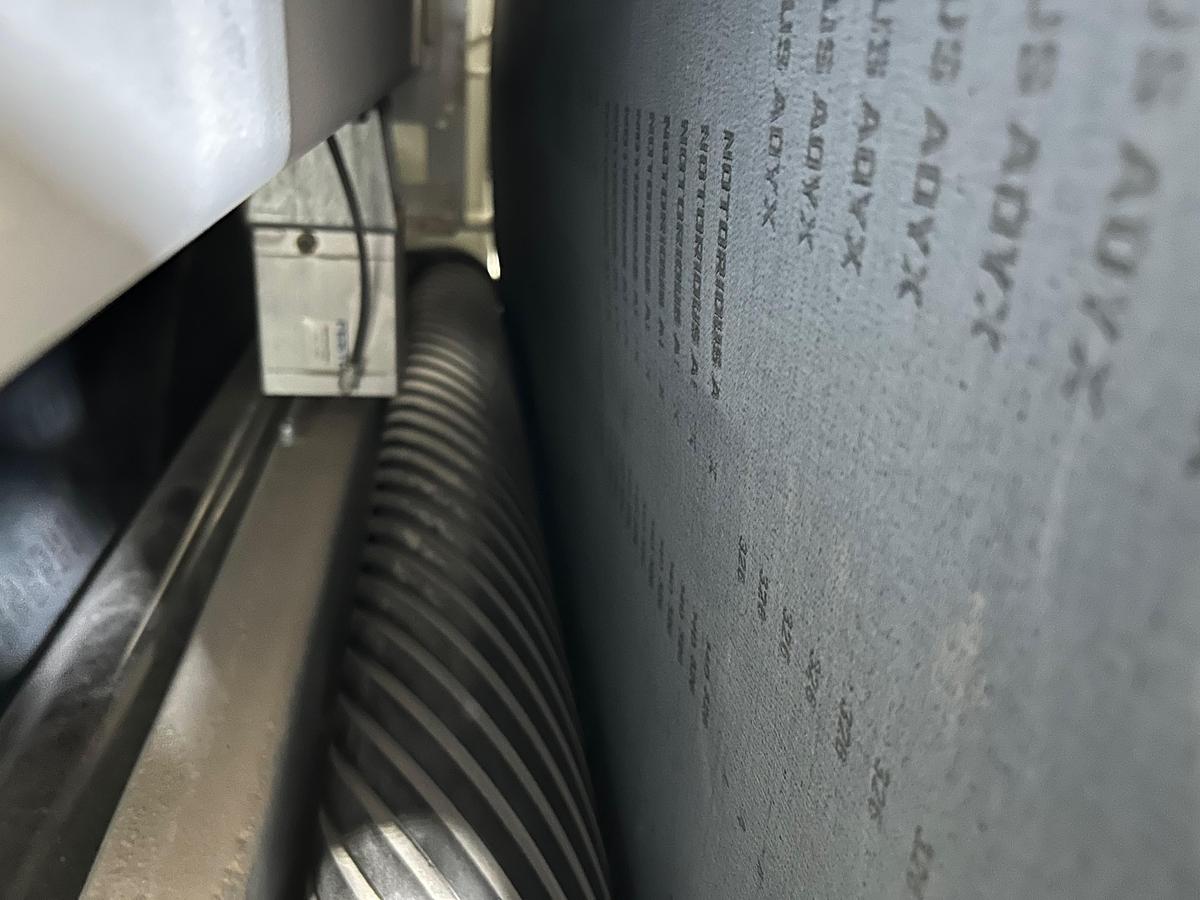

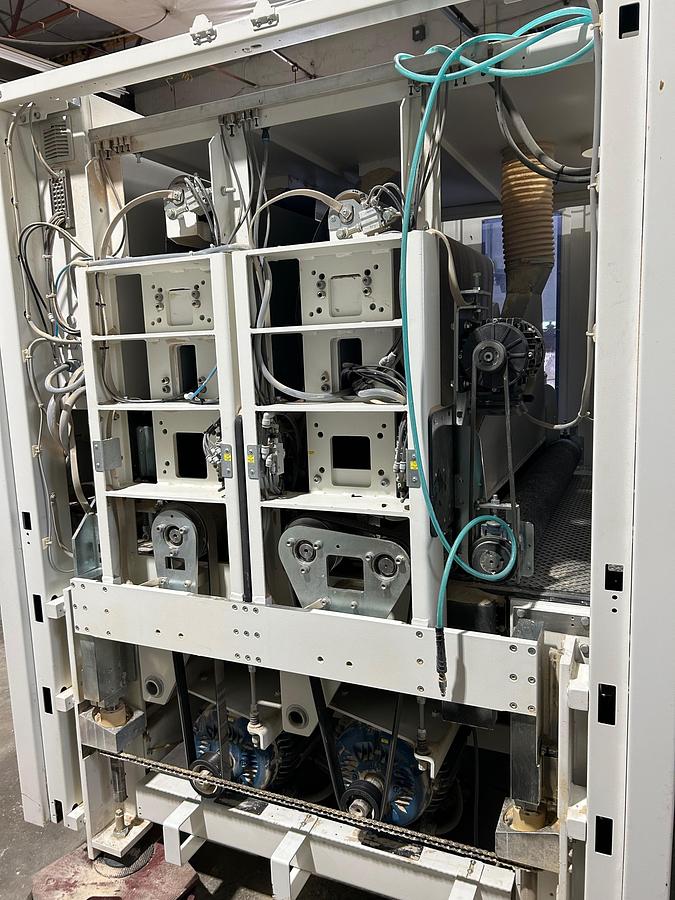

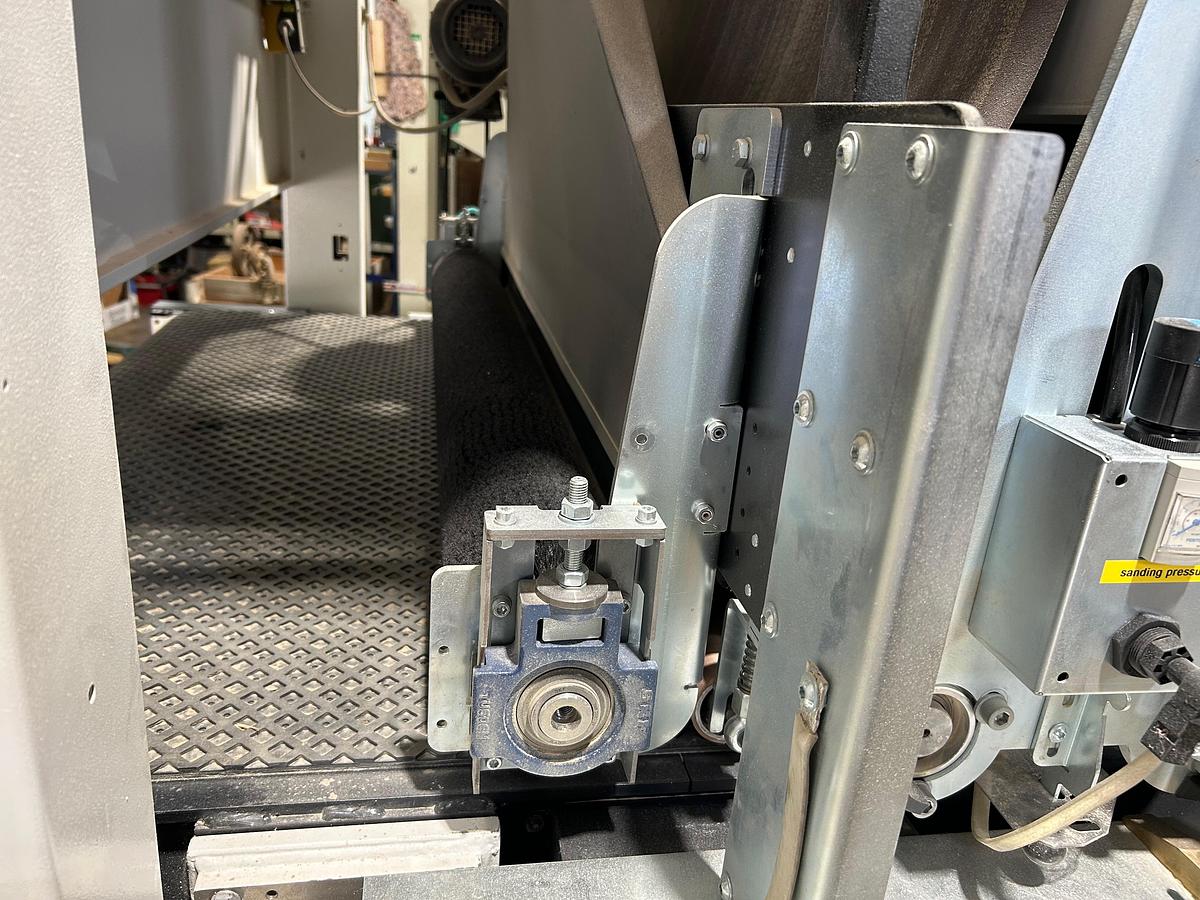

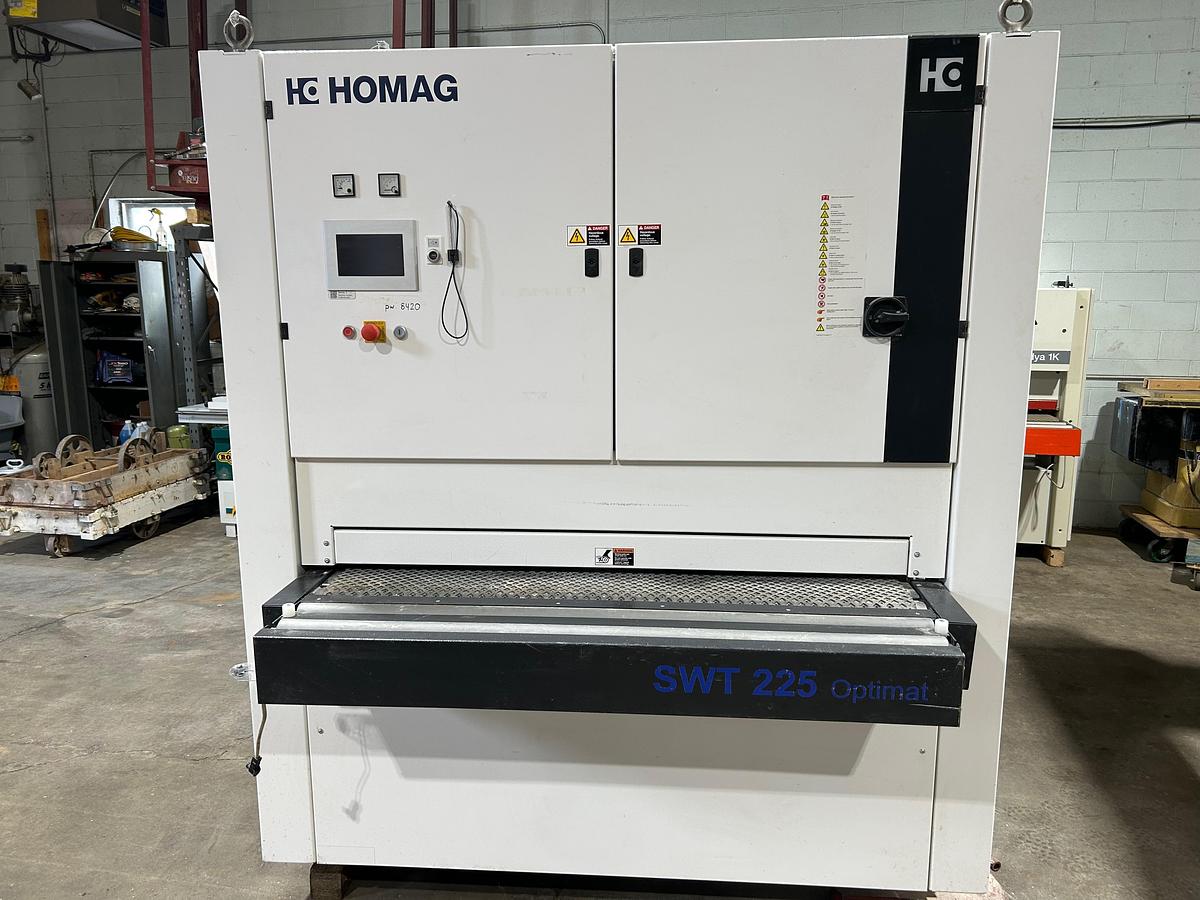

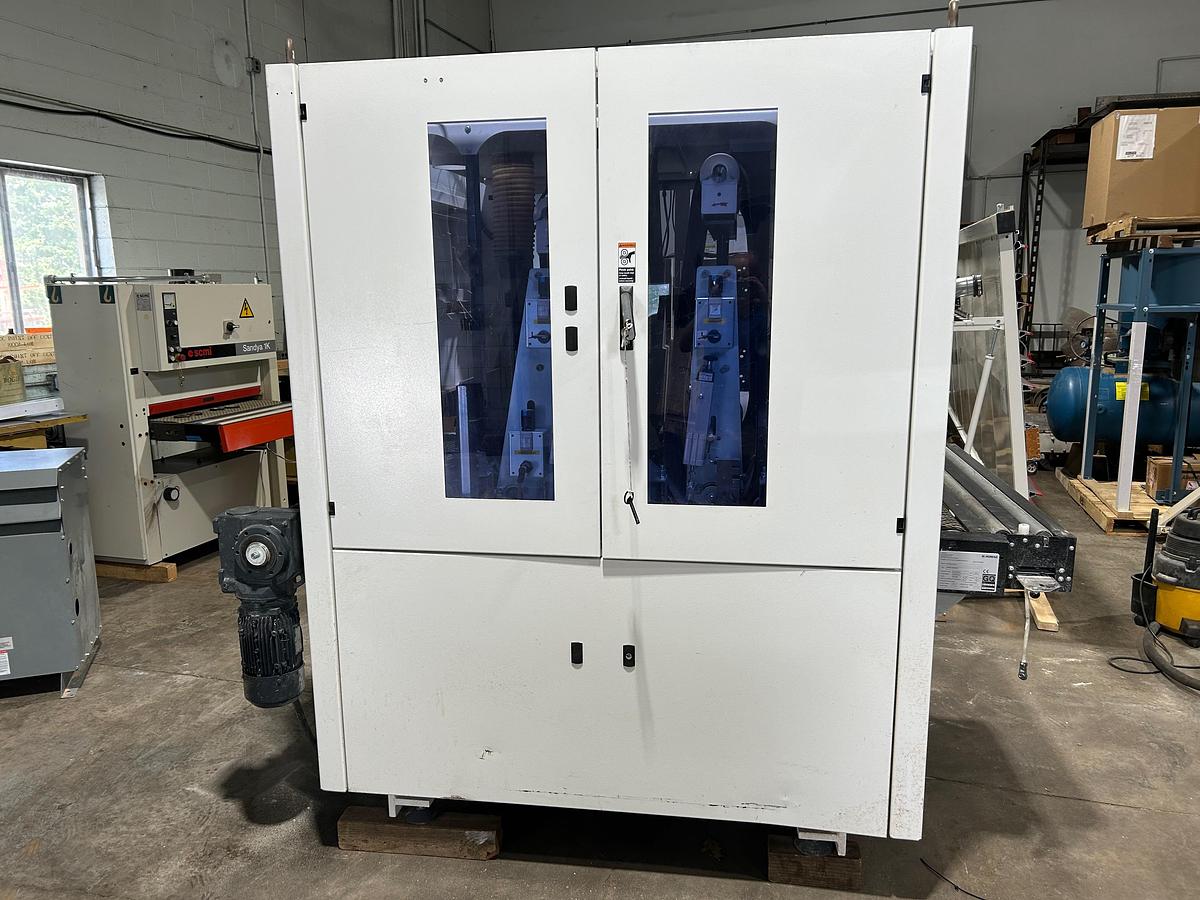

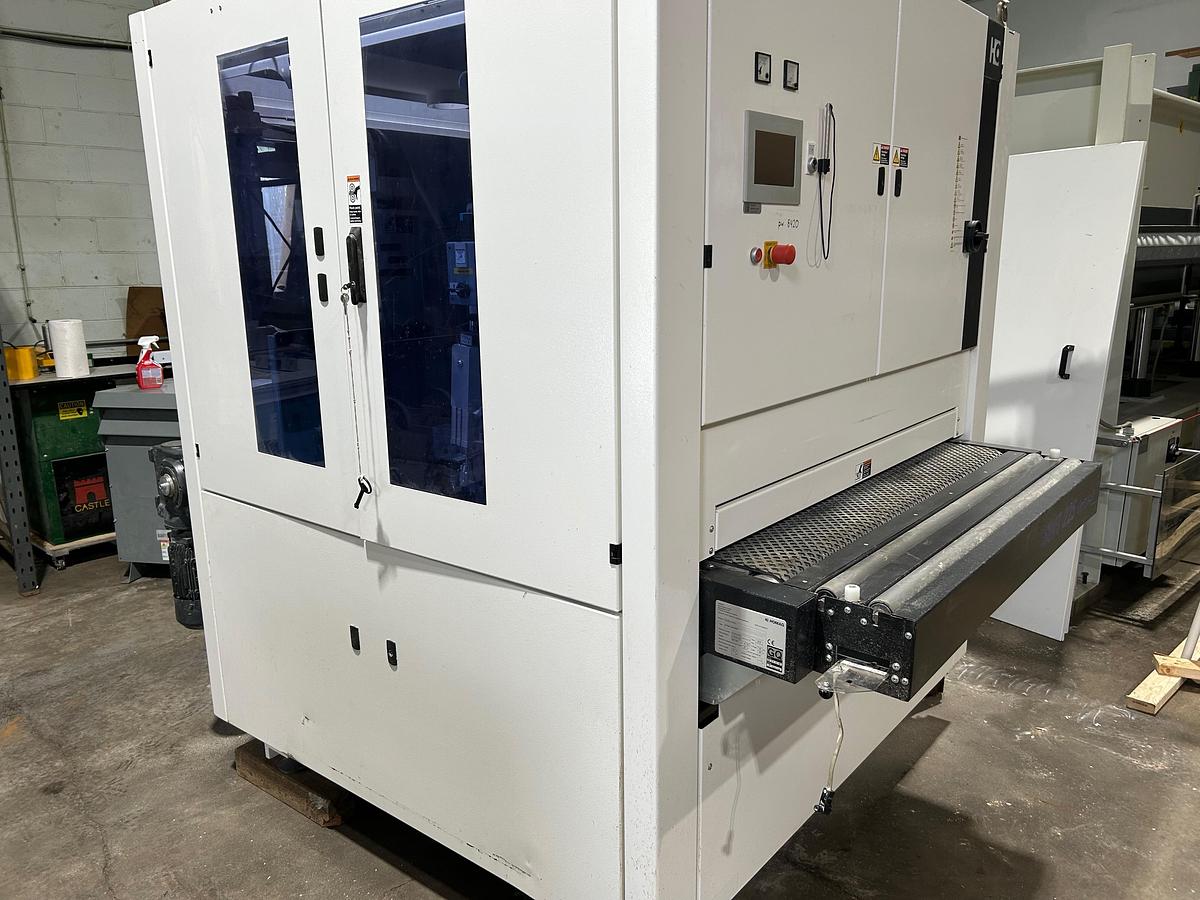

Homag SWT225 RC wide belt sander

Clean and well maintained HOMAG 53" double head wide belt sander. This machine is ideal for calibrating solid wood, veneer sanding and lacquer sanding. It offers flexibility for any sanding job, and can accommodate workpieces up to 53" wide.

• Max working width: 53"
• Max working thickness: 8"
• Upper machine frame adjusted by (4) four large diameter columns
• Fixed table, constant passline design allows for use of transfer conveyors in and out of the sander
• Abrasive belt size: 54" x 85"
• Automatic thickness set up
• Automatic grit set for drum position
• 7" LCD Touch screen controls for machine operation and setting up programs (125 programs)
• Automatic star-delta starting
• Electric eye abrasive belt tracking
• Lexan side doors
• Rubberized pressure rollers
• Inverter controlled feed speed from 10-49 ft/min

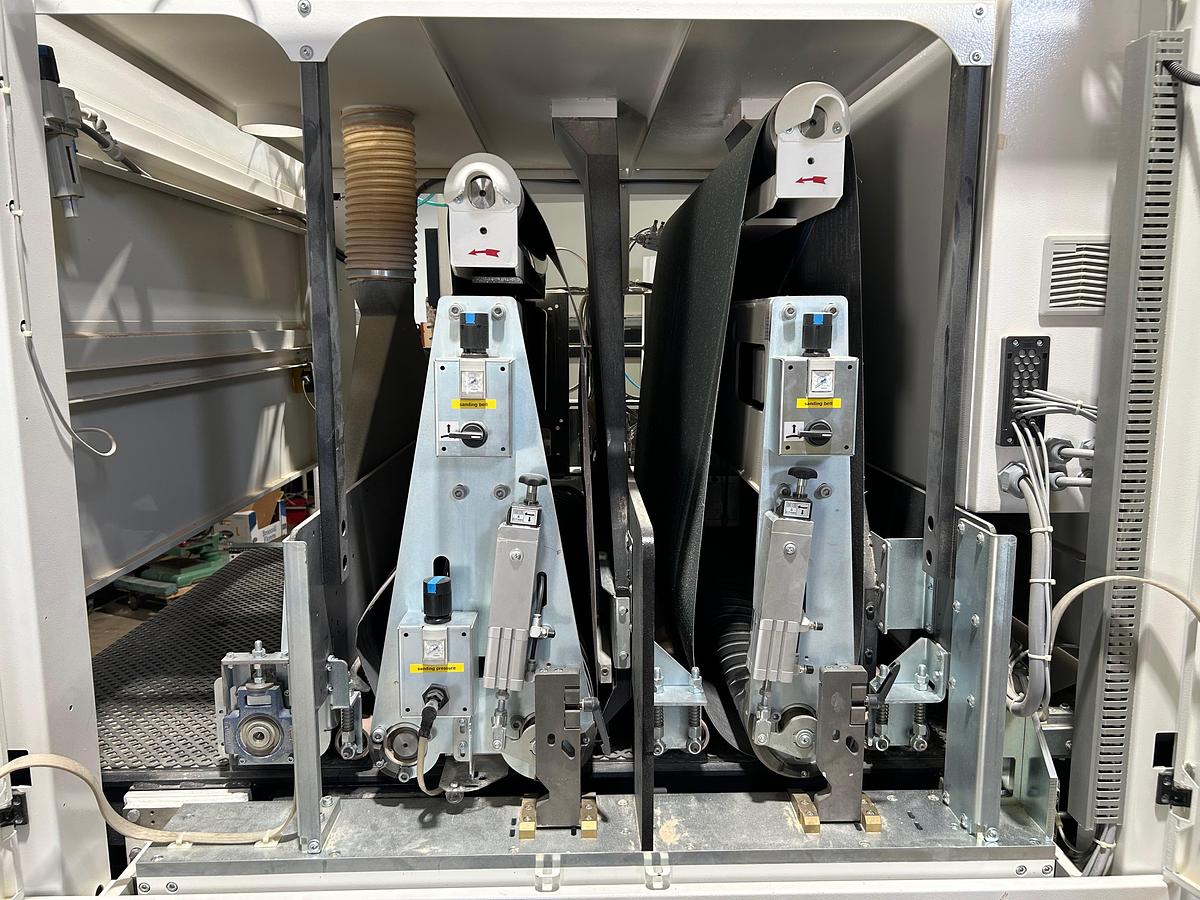

• Head 1: 6" diameter steel roller with auto positioning; drive motor: 29HP
• Head 2: Combination rubber drum with electro - pneumatic segmented platen (25mm segments)
• Abrasive belt speed variable from 6.5-59 fps; 23HP
• Air jet blower on head 2
• Cleaning brush
• Voltage 460v - 99 amps
• Compressed air- 15 cfm at 90 psi
• Total dust cfm: 3260 cfm Head 1: 7" port, Head 2: 7" port, Panel cleaning brush: 5.5" port, vacuum table fan: 4"
