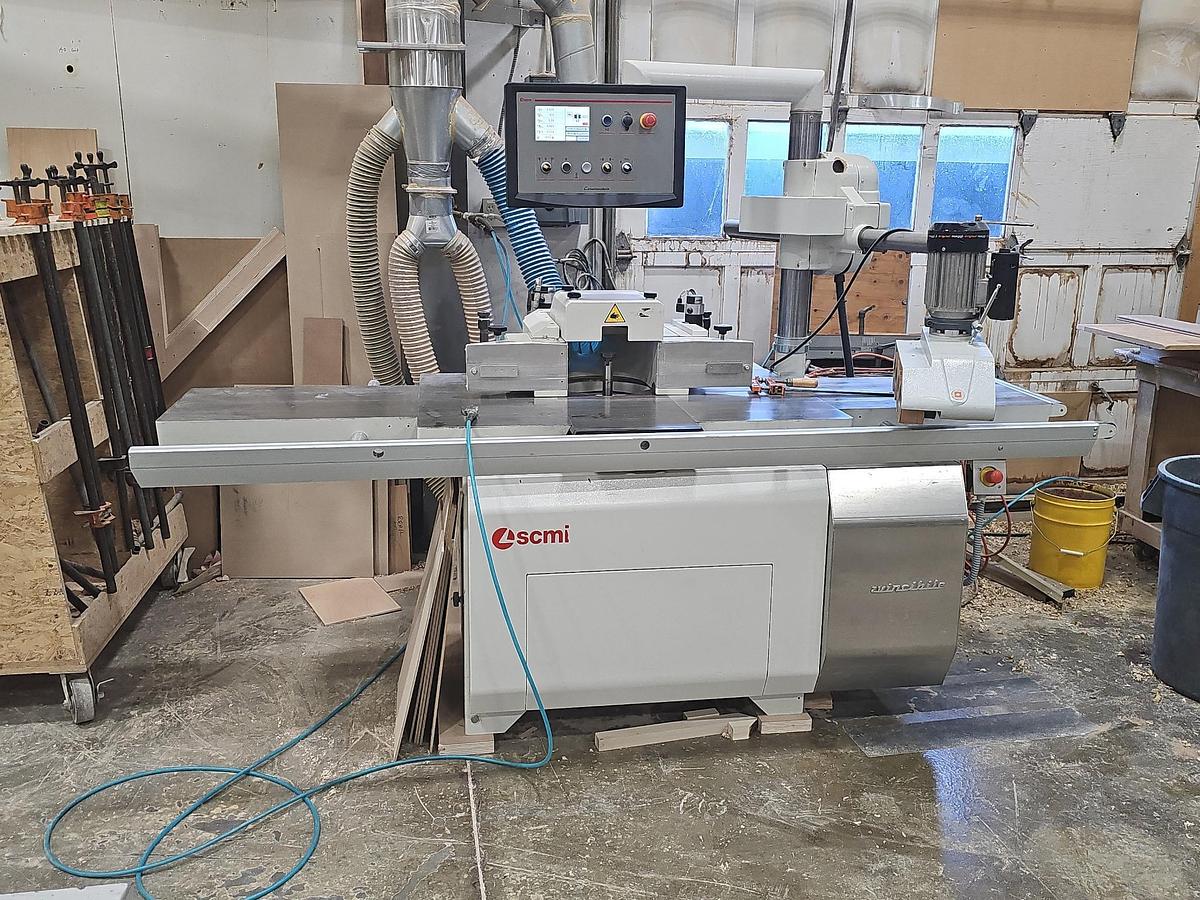

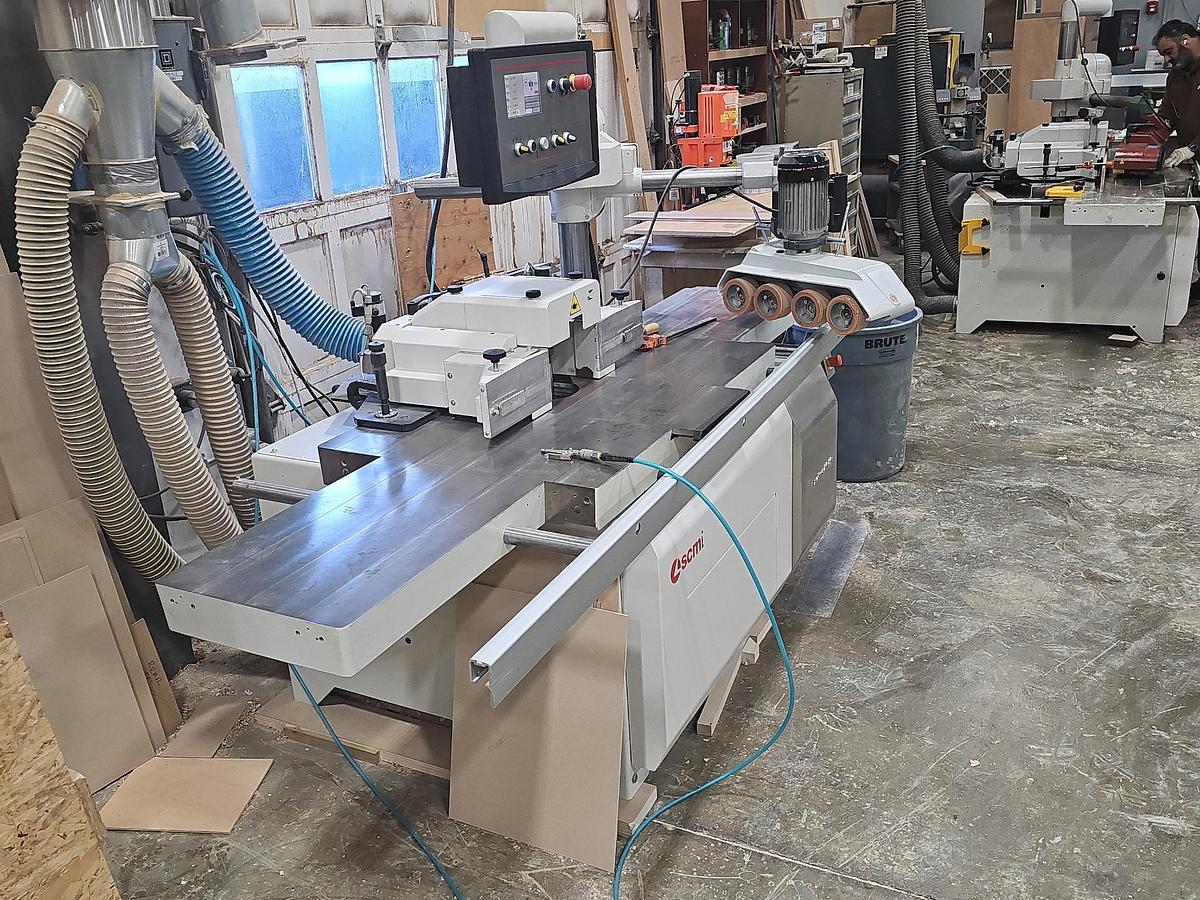

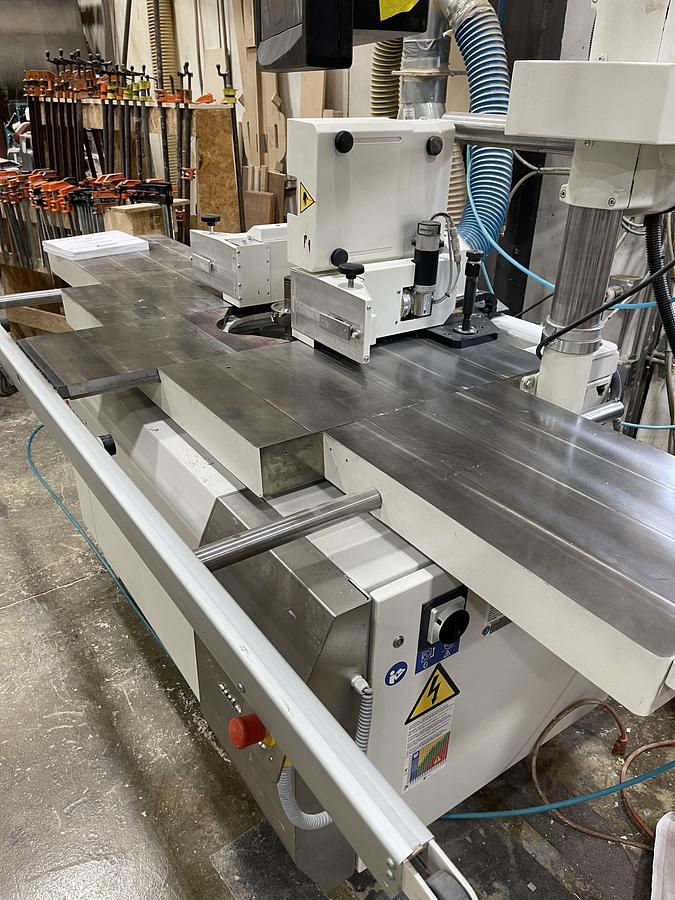

SCMI Ti5 5-axis CNC spindle shaper

The SCMI Ti5 is a used 5-axis CNC spindle shaper designed for versatile and precise woodworking operations. This machine offers advanced multi-axis capabilities, allowing for complex shaping tasks that accommodate a variety of design specifications. With CNC control, it provides accuracy and repeatability, ensuring high-quality results for intricate projects. Built with durability and performance in mind, the SCMI Ti5 is crafted by SCMI, a renowned name in the woodworking equipment industry, ensuring reliability in demanding industrial environments. The CNC technology integrated within this model allows for customizable and programmable operations, enhancing productivity and reducing manual intervention. This particular unit shows signs of previous use but remains functional, with operational components meeting necessary standards for safe use. The Ti5 is an ideal solution for woodworkers seeking a robust, efficient, and technology-driven shaping machine capable of tackling detailed and complex tasks with precision.

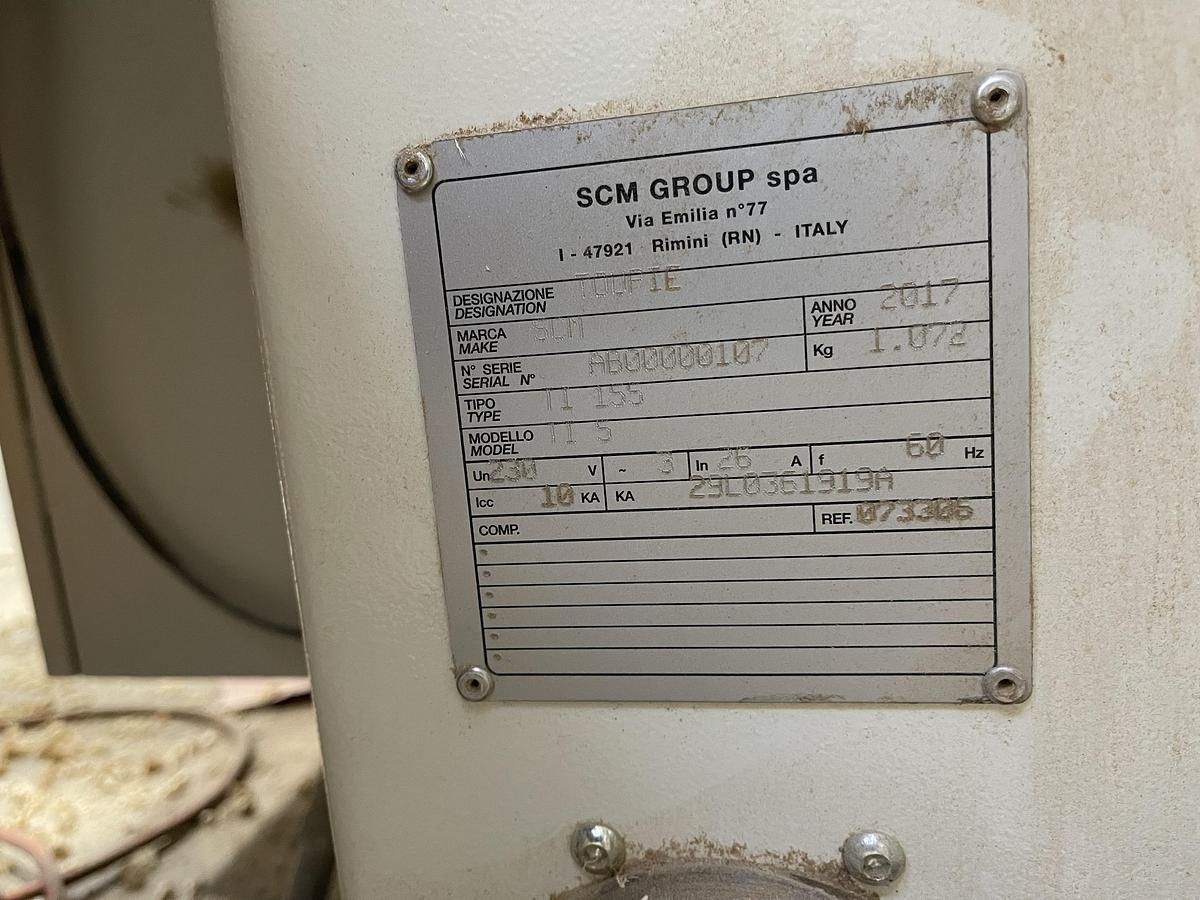

• Main motor: 13Hp 230v 3ph
• Electrical requirement: 26 amps
• Inverter controlled spindle speed from 900 to12,500 rpm
• HSK 63 quick release spindles
• Servo controlled table throat plate
• Servo positioned stock feeder
• Servo controlled fences

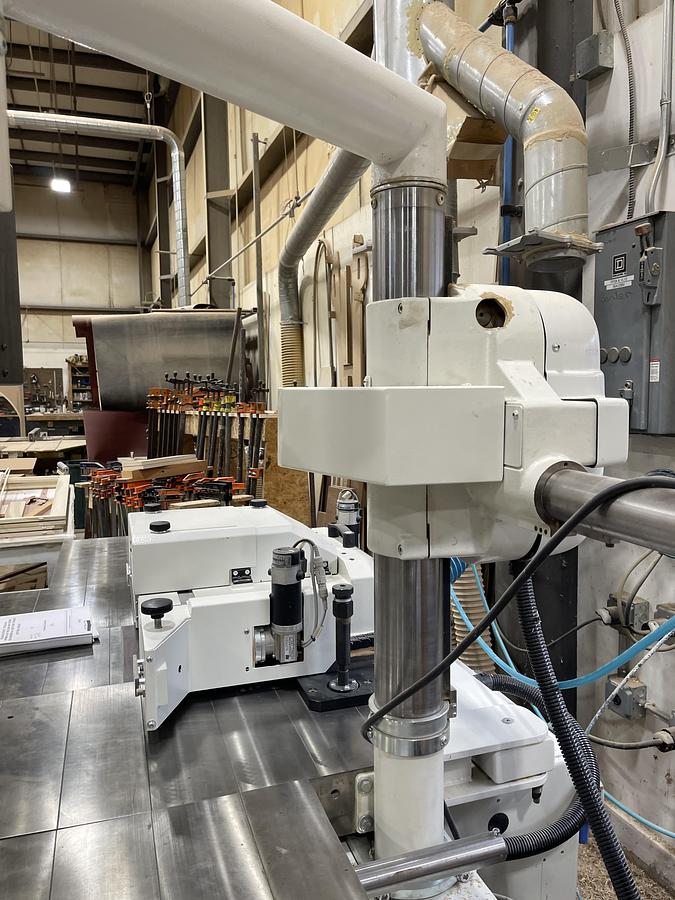

• Servo controlled spindle position for height
• Servo controlled spindle position for tilt
• 45 degree tilting of spindle front and back
• Max tool diameter: 10"
• Max height under nut" 5 1/2"

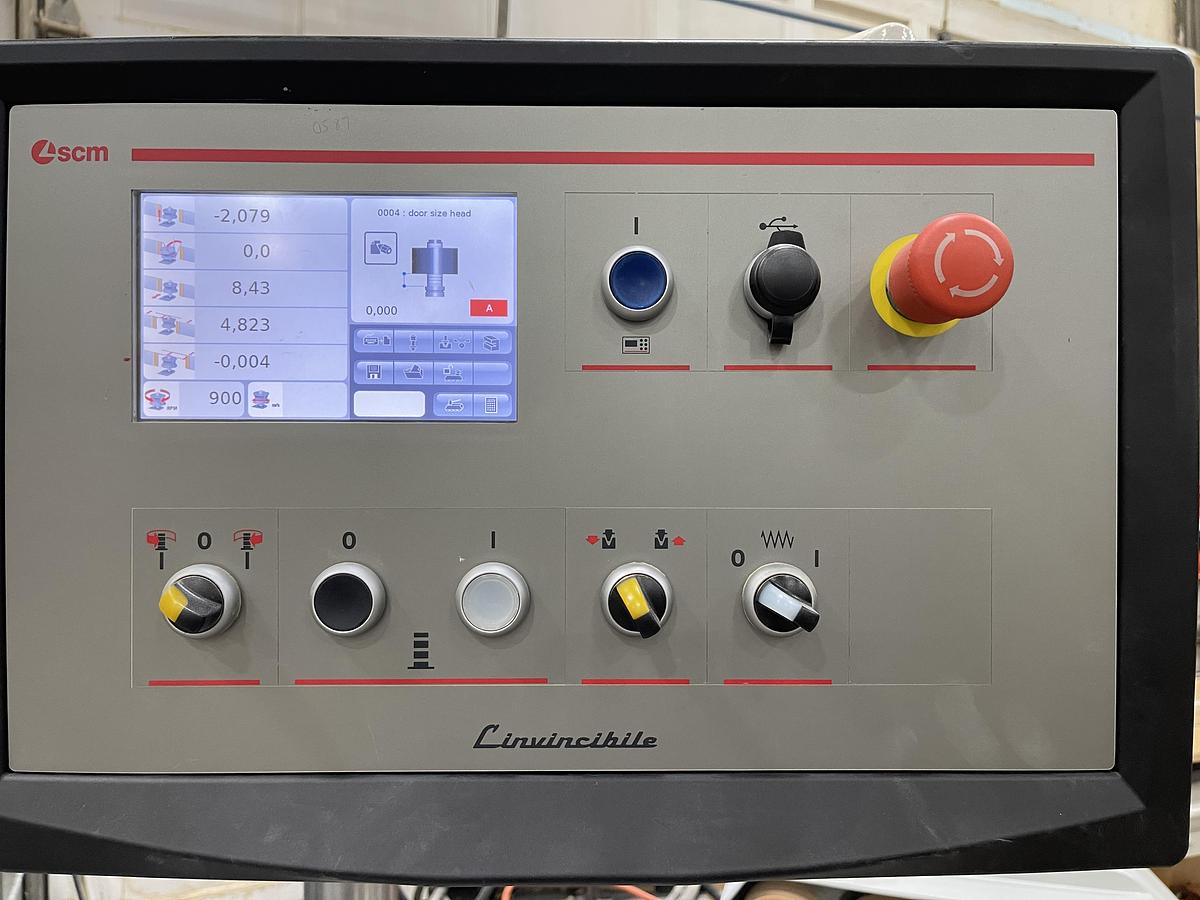

• Easy touch 7" display
• Programs can be backed up via thumb drive
• Table is 8' 4" overall length
