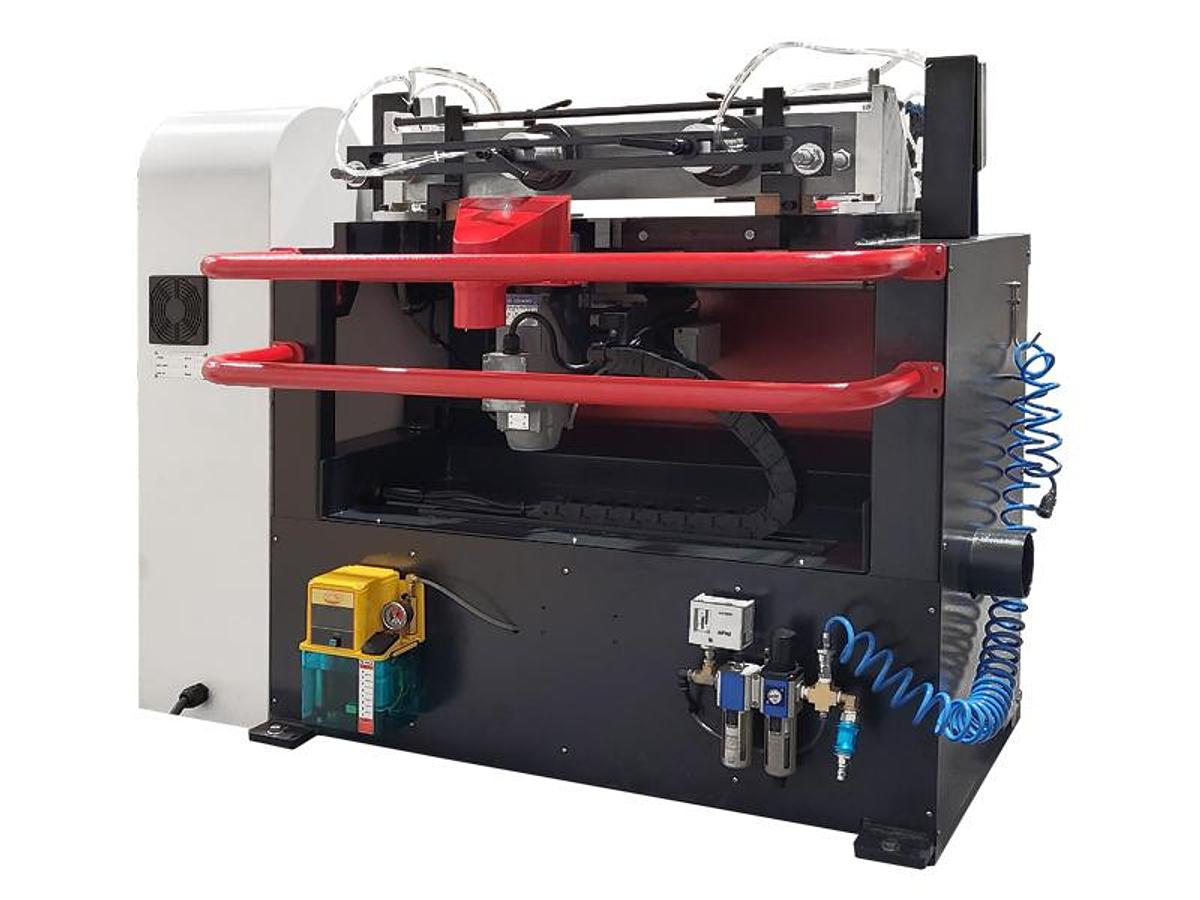

Cantek CN600 CNC Dovetail machine

The Cantek CN600 CNC dovetailer provides optimal flexibility & output in the production of dovetail drawer boxes. The user friendly touch screen interface allows the operator to select from a range of standard dovetail joints as well as program the spacing or pitch of the dovetails.  This allows for maximum flexibility to ensure the optimal aesthetic result.  The dovetail milling unit can also pre-score the workpiece to ensure the best possible finish. In addition, the machining stroke is optimized to reduce any wasted time leading to greater productivity.  With a capacity of up to 60 drawers an hour the CN600 is truly a production dovetailer.

Features:

• High speed production with a capacity up to 60 drawer boxes per hour!
• CNC allows flexibility on dovetail patterns without the constraints of following a fixed pattern
• Simply enter the desired pitch or the number of dovetails (variable pitch)

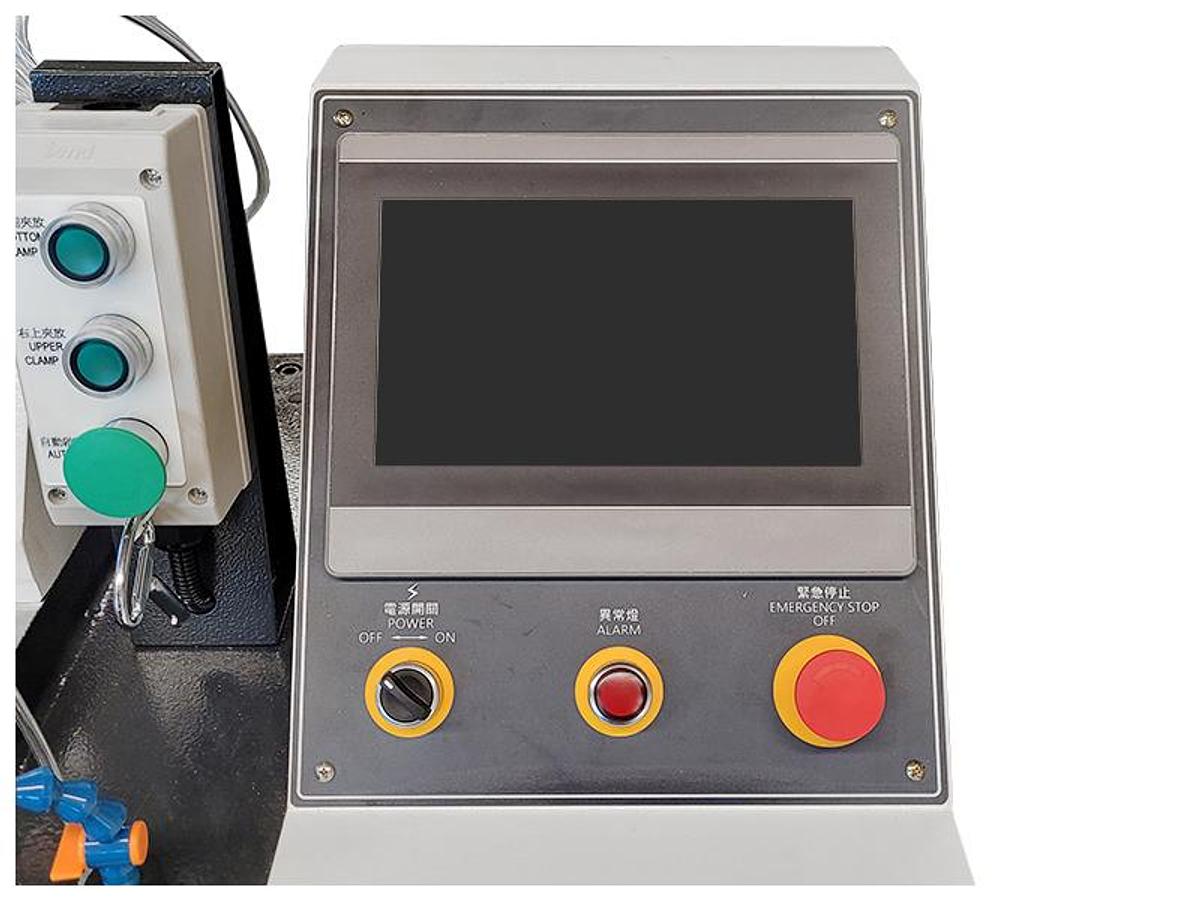

• User friendly touch screen interface
• Automatic scoring of the workpiece for superior finish
• Two working zones for continuous production

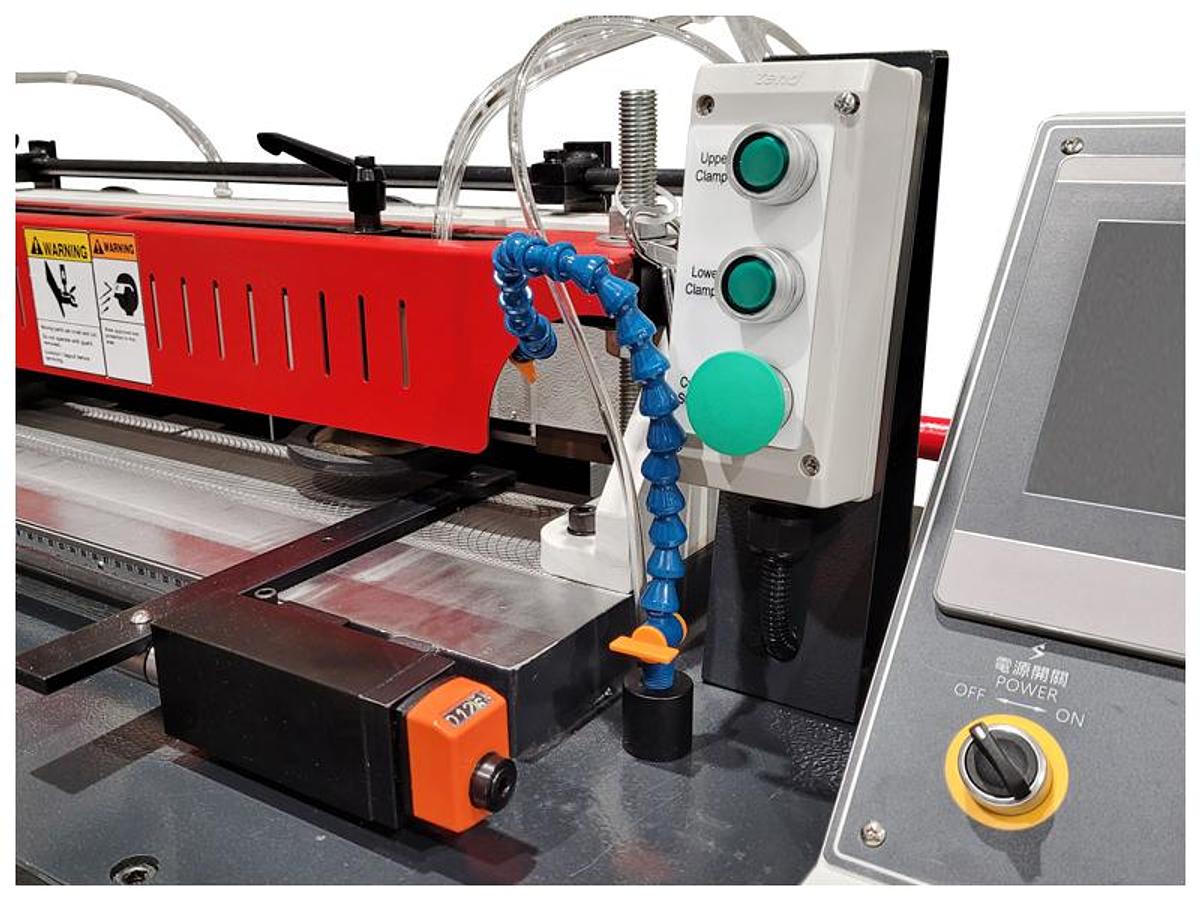

• Adjustable fences with mechanical digital readouts for precise adjustment (setting provided by the control)

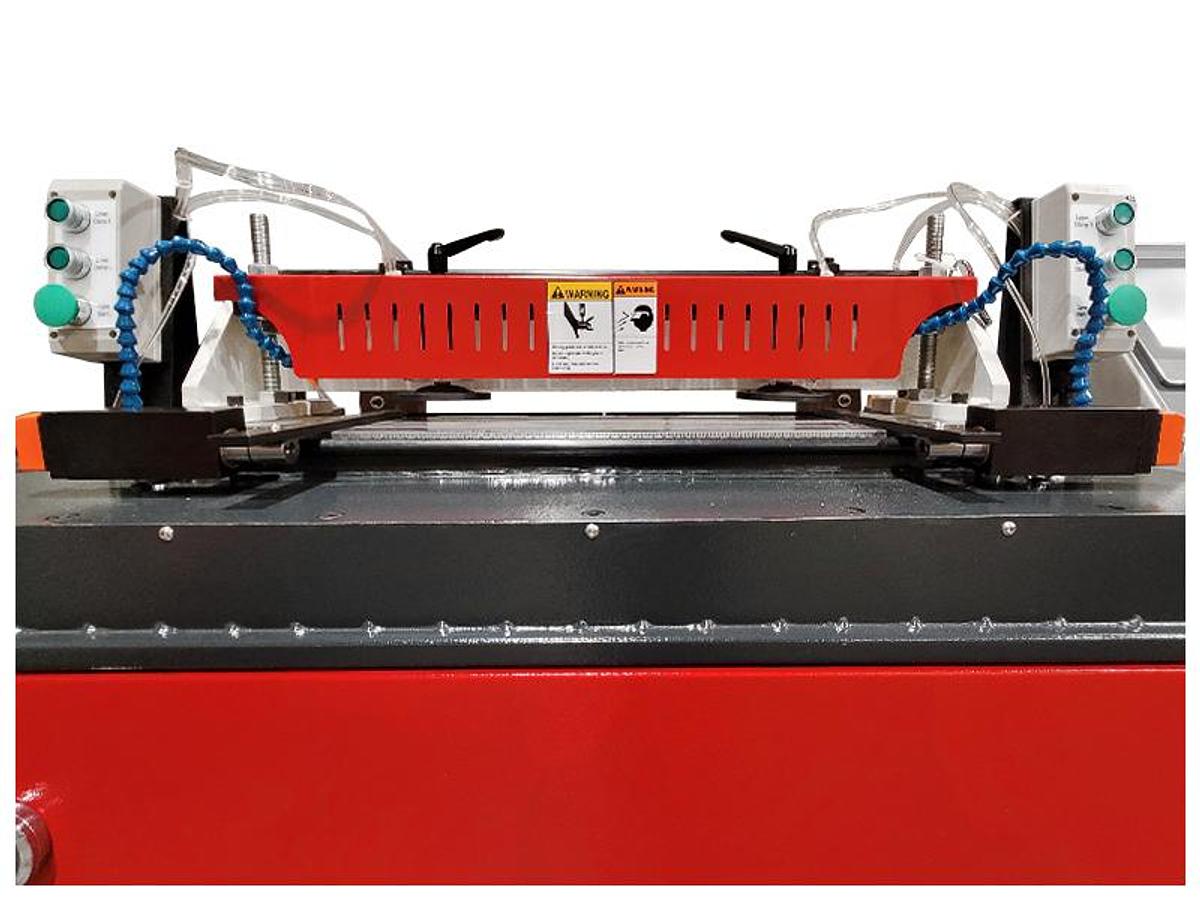

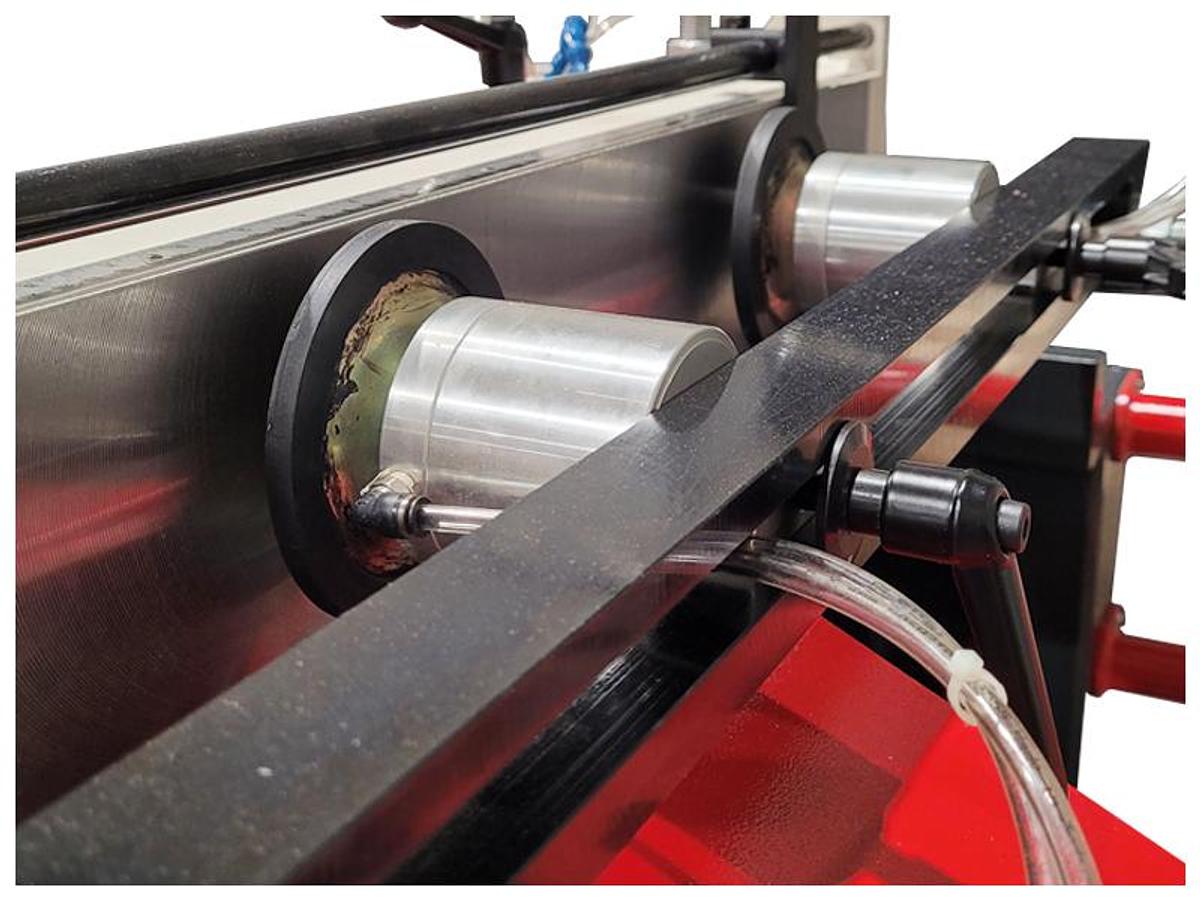

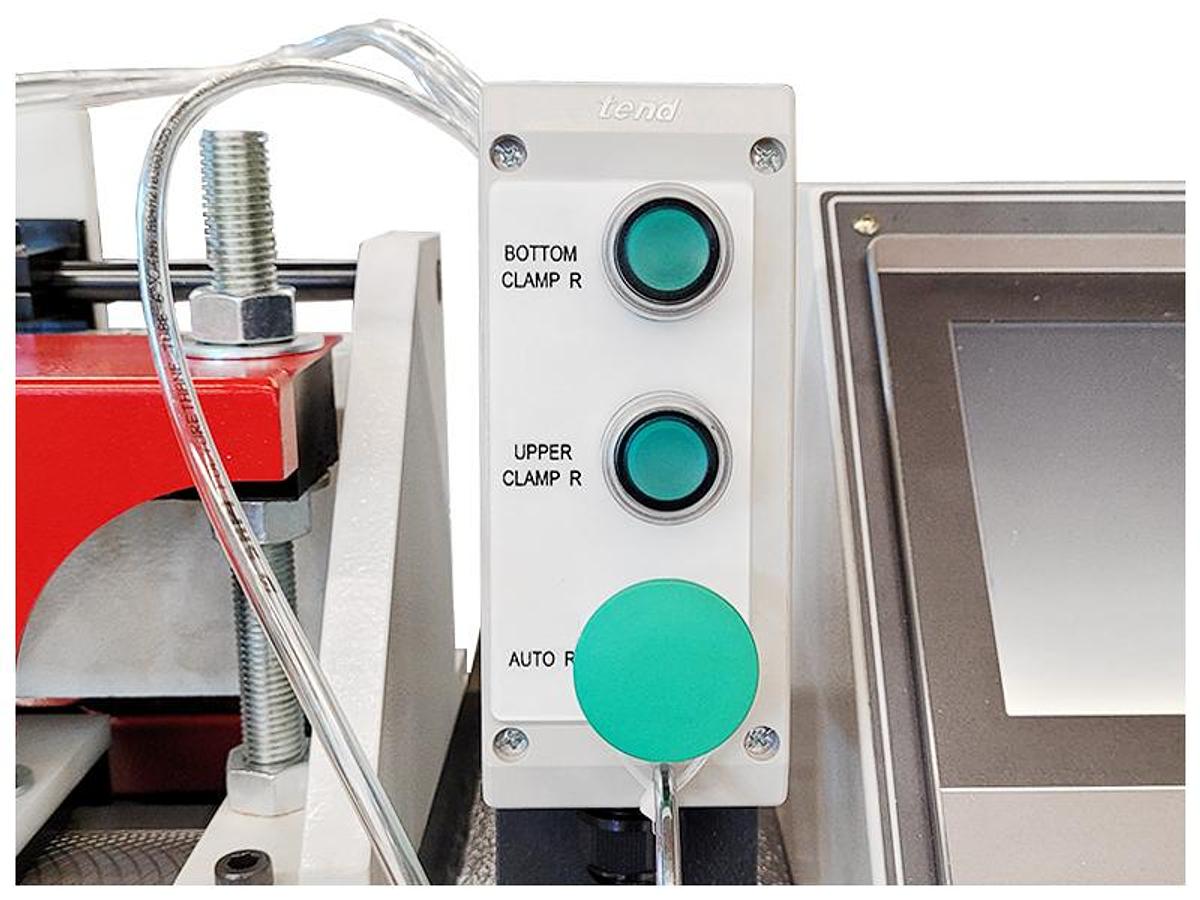

• Pneumatic clamping of the workpiece.

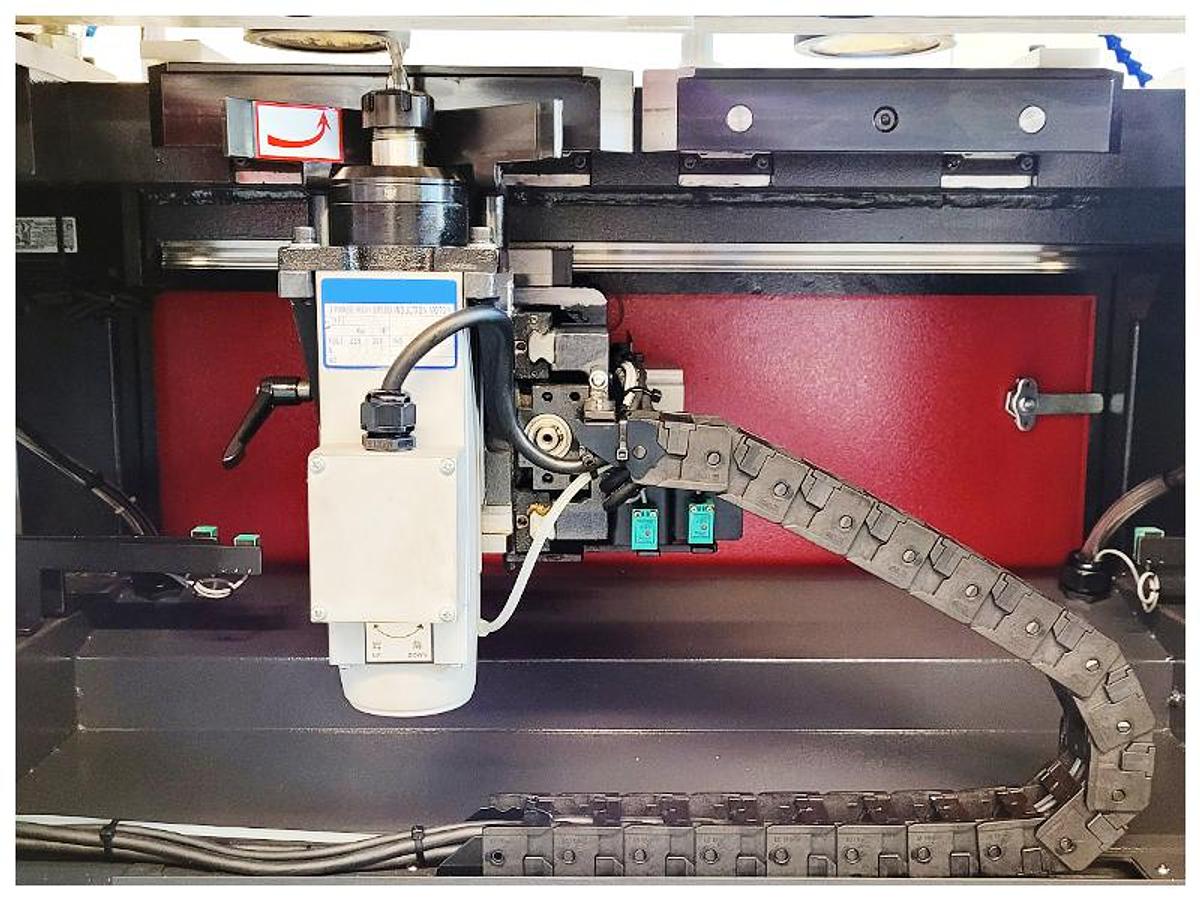

• 2HP 20000 RPM spindle for optimal finish on dovetail drawers
• Rigid machine construction resulting in superior finish quality while promoting long machine life

Maximum thickness of board:

1” (25 mm)

Minimum thickness of board:

0.315” (8 mm)

Maximum working width:

23.6” (600 mm)

Dovetail spacing:

Variable

Spindle speed:

20000 R.P.M

Spindle motor:

2 HP

Total motor horsepower:

4 HP

Height of table:

33.5” (850 mm)

Dust hood outlet diameter:

ø3″ x 1 & ø4″ x 1

Working air pressure:

80 PSI (6 kg/cm²)

Electrics:

230/3/60 = 14 Amps

Machine dimensions (LxWxH):

59” x 33” x 52” (1500x840x1300 mm)

Packing dimensions (LxWxH):

63” x 37” x 56” (1600x940x1400 mm)

Machine weight:

1540 lbs (700 kgs)

hipping weight:

1584 lbs (720 kgs)
