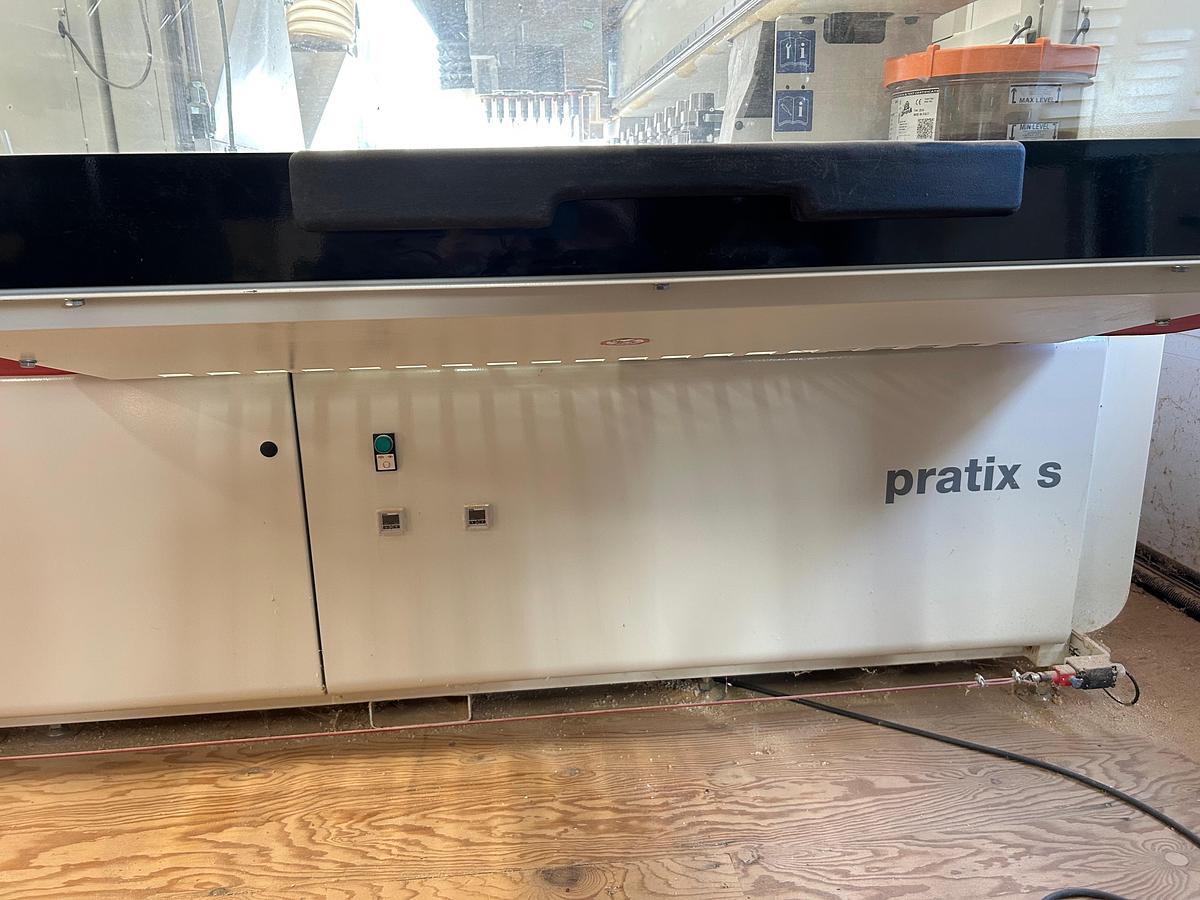

2017 SCMI Pratix S-12 CR
Featured
2017 SCMI Pratix S-12 CR
Available quantity:1
or
Call 508-303-0600
Description
- Very nice, one owner 2017 SCM Pratix S12 with little use.

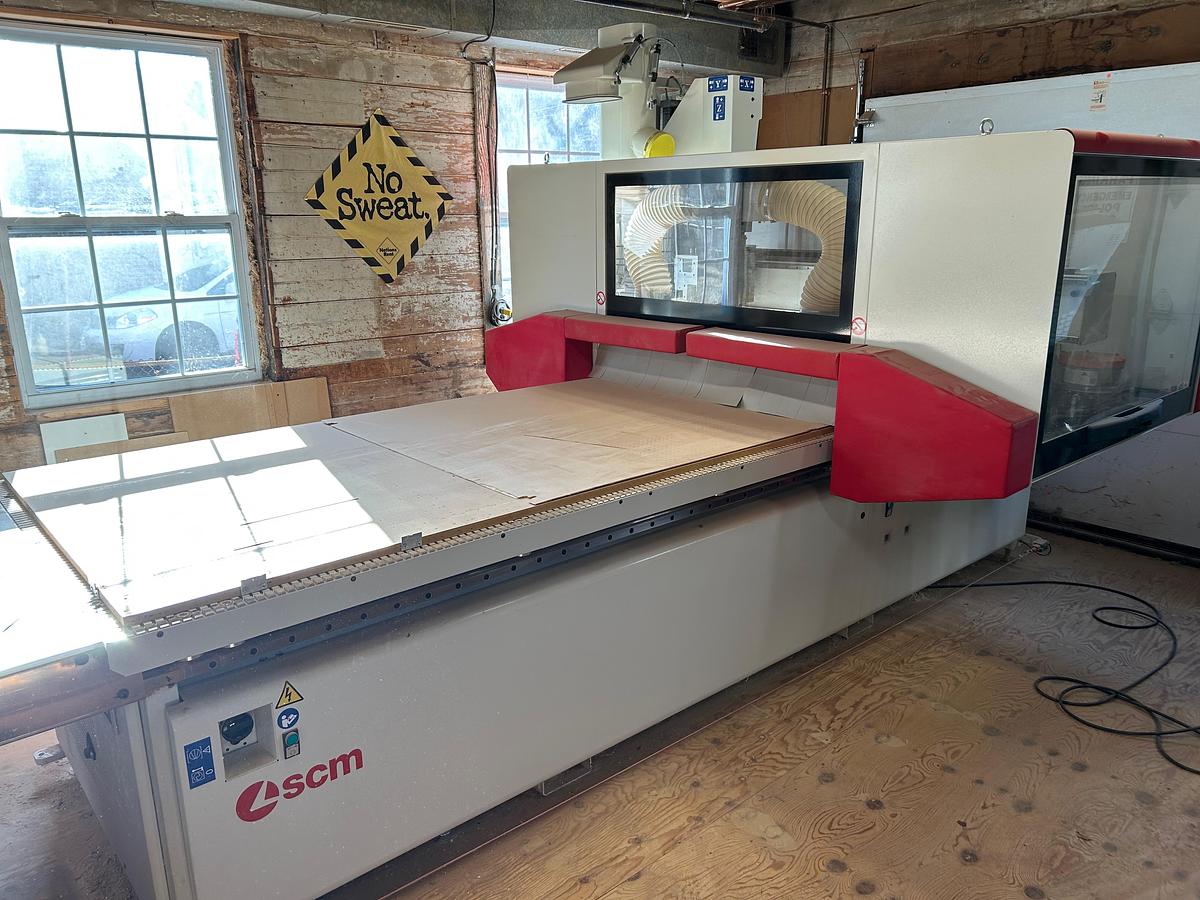

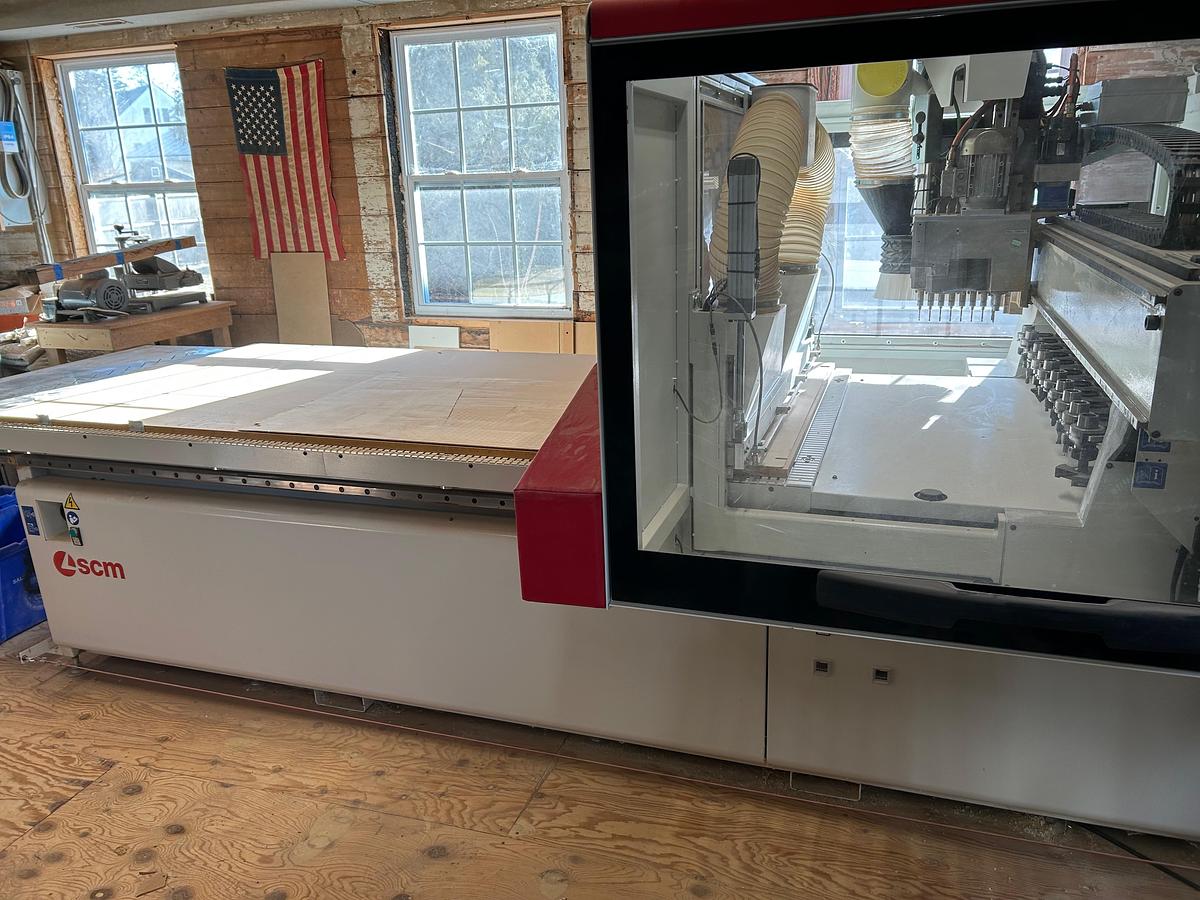

- 4' x 8' traveling gantry with stationary aluminum dual vacuum table with: "MATRIX" square grid pattern for fixturing parts.
- Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".
- Part location pop-up pins mounted on the table perimeter.
- Working Field"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm);
- Max. material thickness 5.9" (150 mm).
- Positioning Speed "X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM)
- Closed loop AC Servo drive system with High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways.

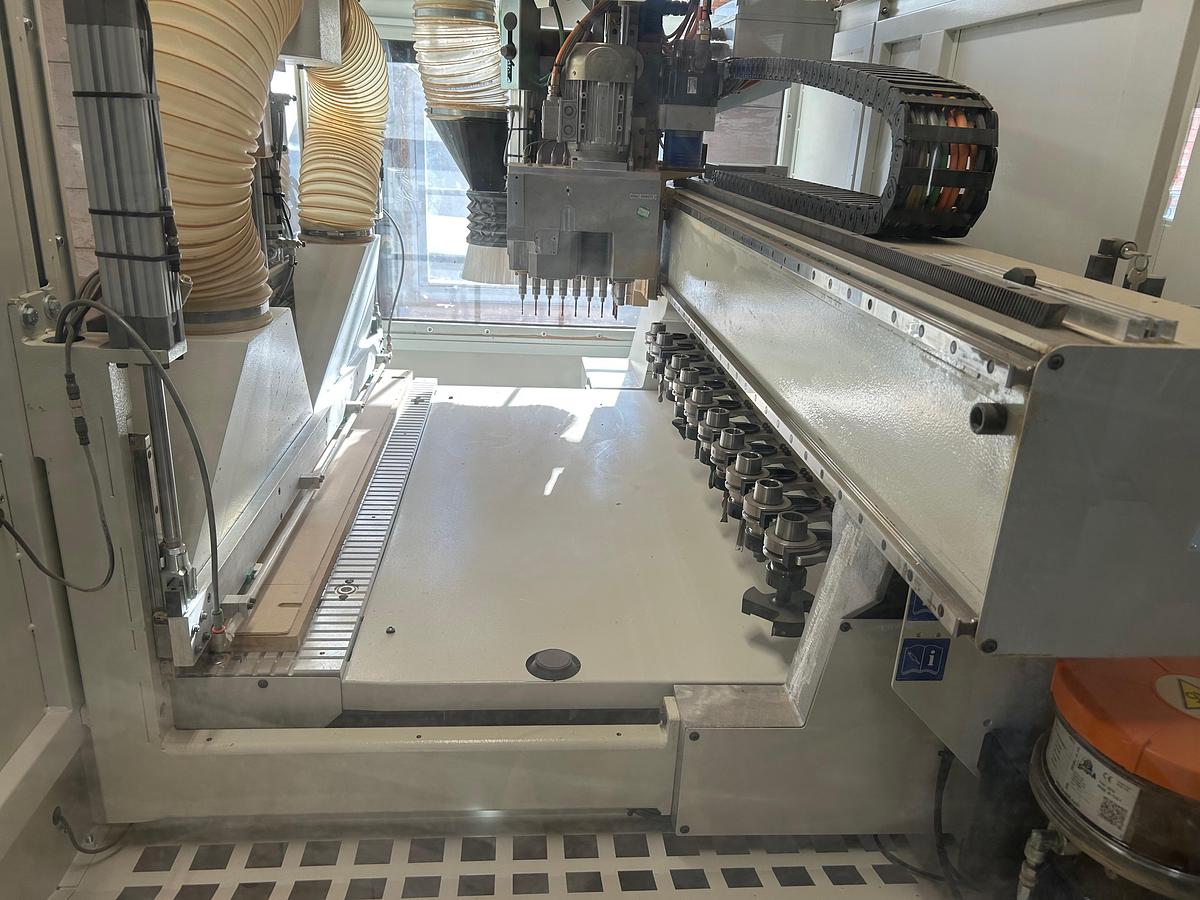

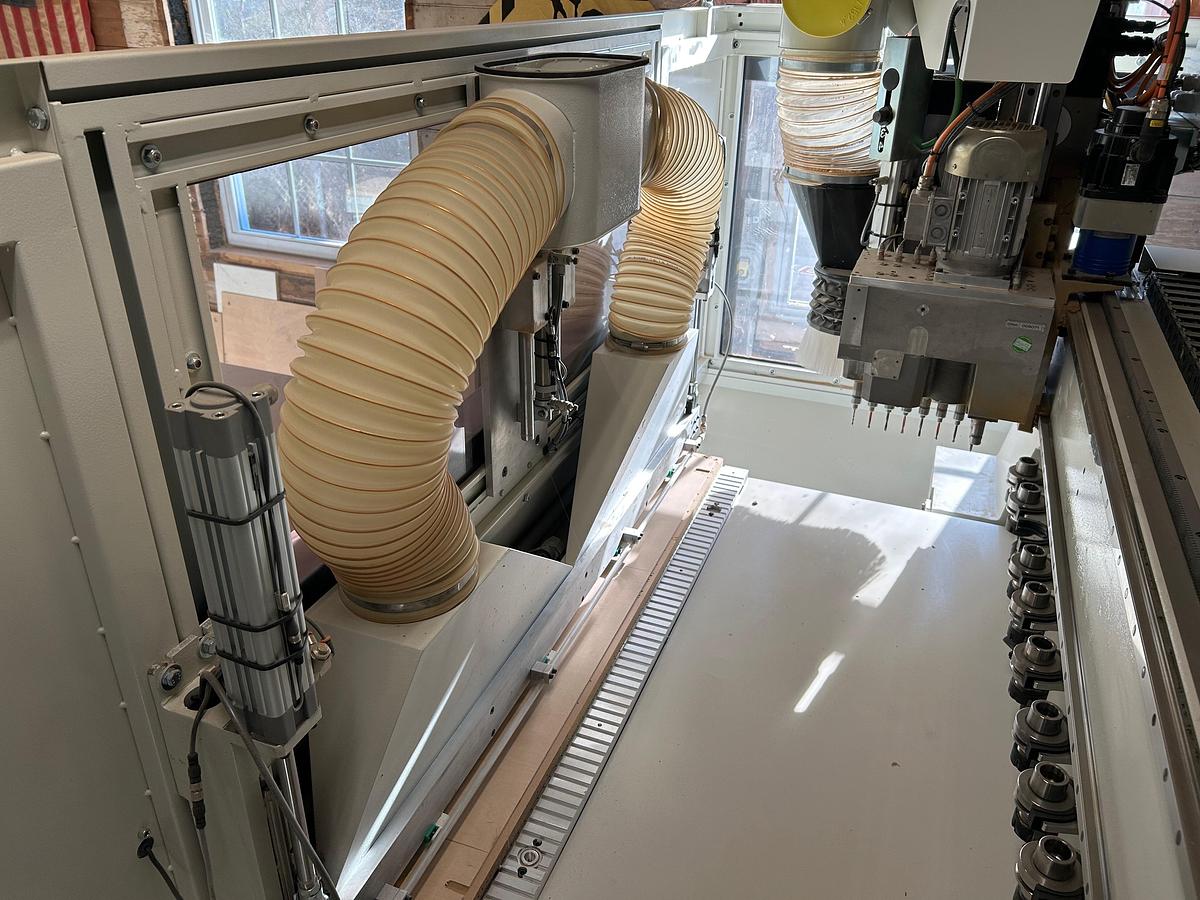

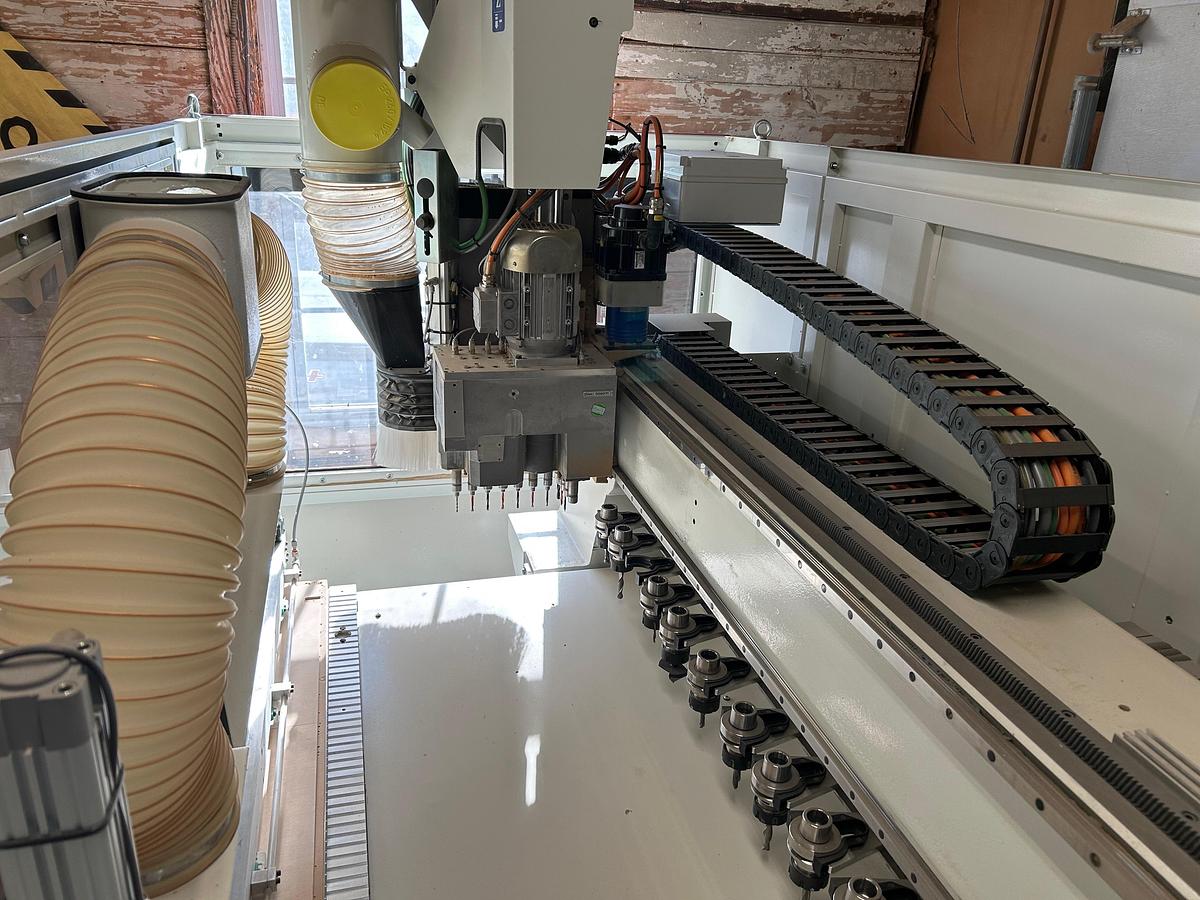

- Boring Unit 3 HP (2.2 kW) - 6,000 RPM motor: (7) vertical spindles on 32 mm centers: (5) Spindles in "X" axis & (2) spindles in "Y" axis.
- Spindle: 9 HP (6.7 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM.
- (1) 12-Position ATC tool rack mounted to the machine base RH side.
- Includes push off device (sweep) with pneumatic deployment

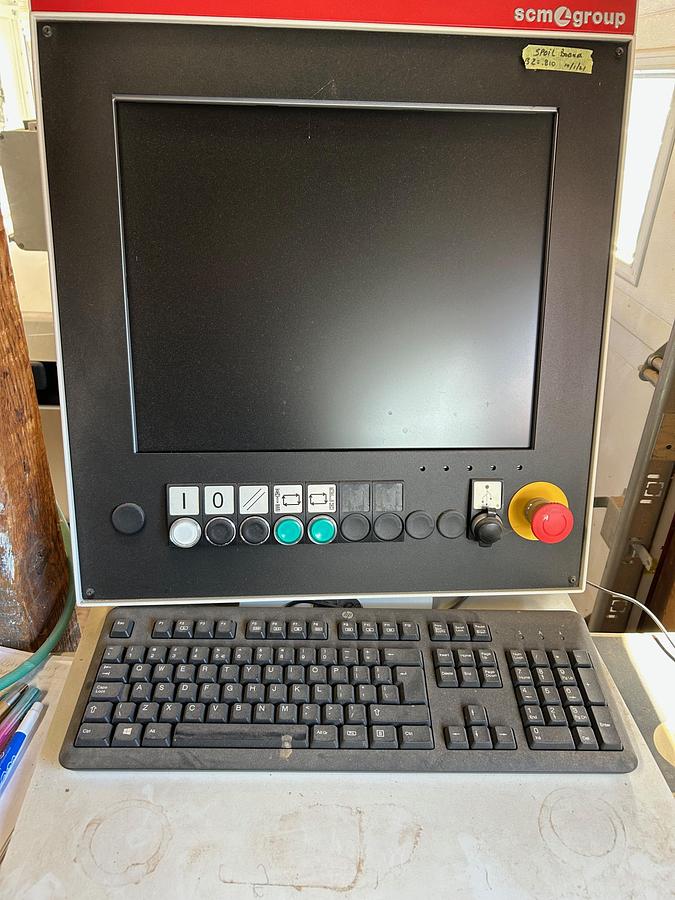

- Operator & Machine Control PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.

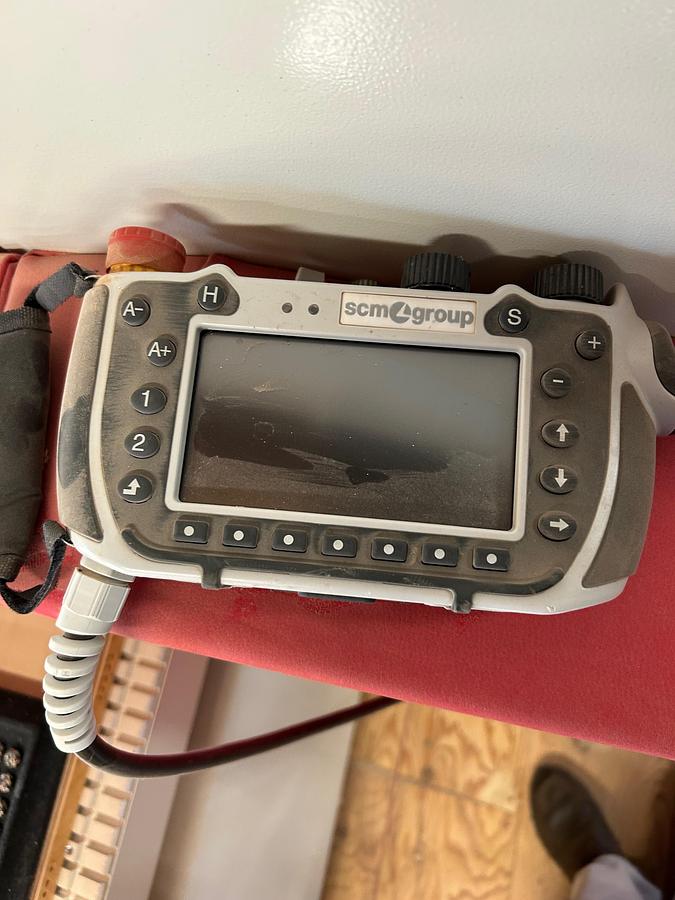

- Universal remote Pendant with 7" color display allows for the effective management of all machine functions.
- Manual Jog Mode to loading & execution of a program. The pendant is fitted with: USB Port to allow quick load & setup of new programs
- Safety "bump stop" bumpers
Specifications
| Manufacturer | SCMI |
| Model | Pratix S-12 CR |
| Year | 2017 |
| Condition | Used |
| Serial Number | AH/120128 |
| Stock Number | 00118 |
