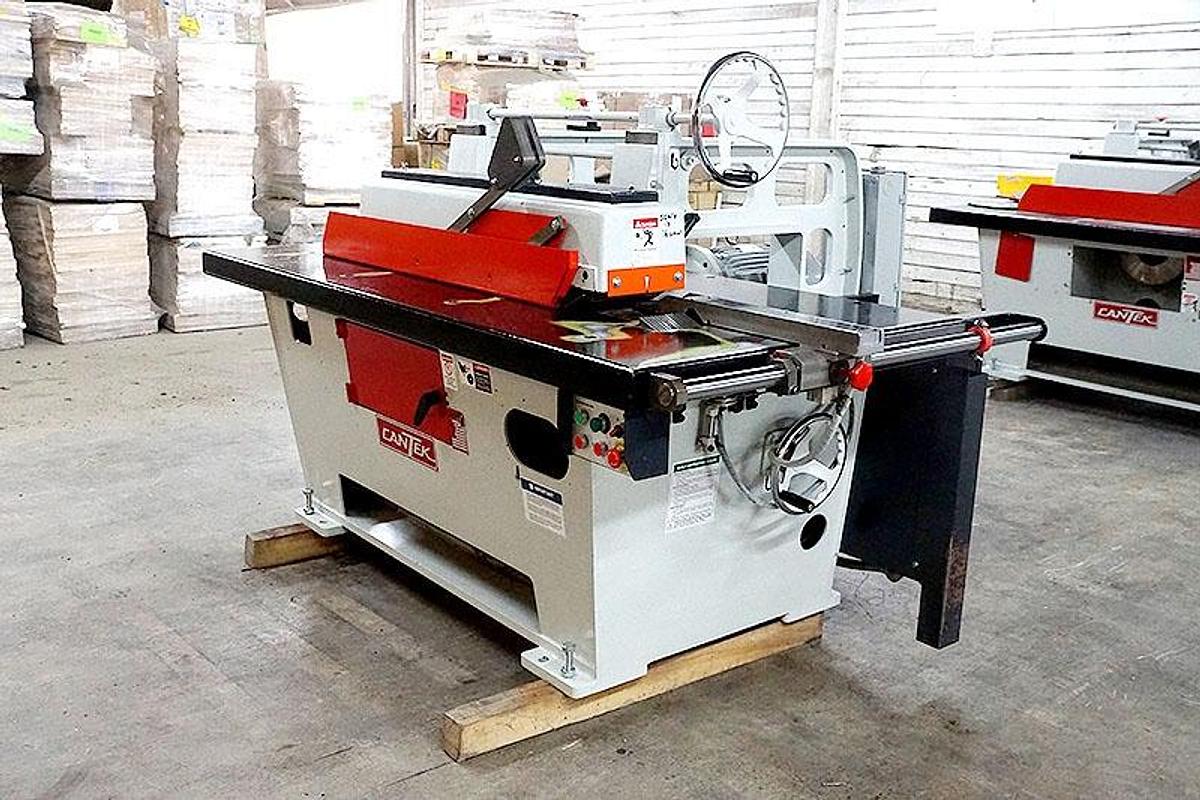

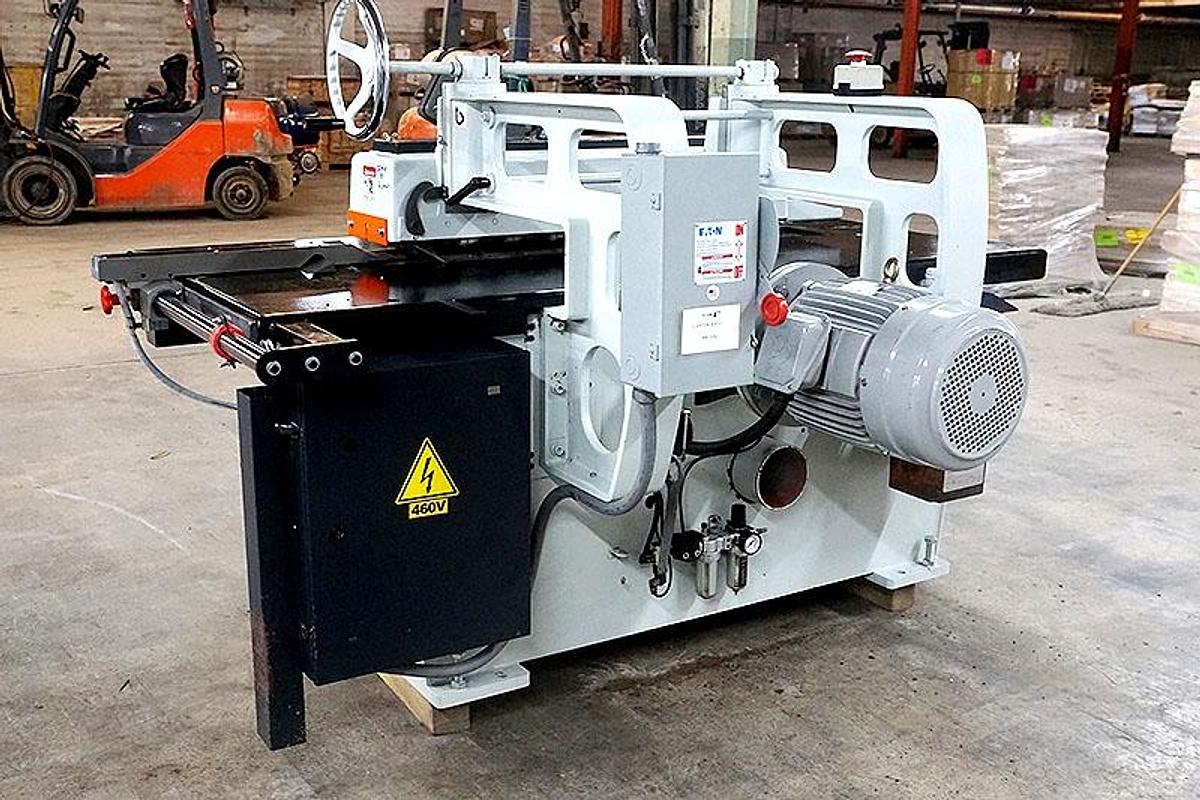

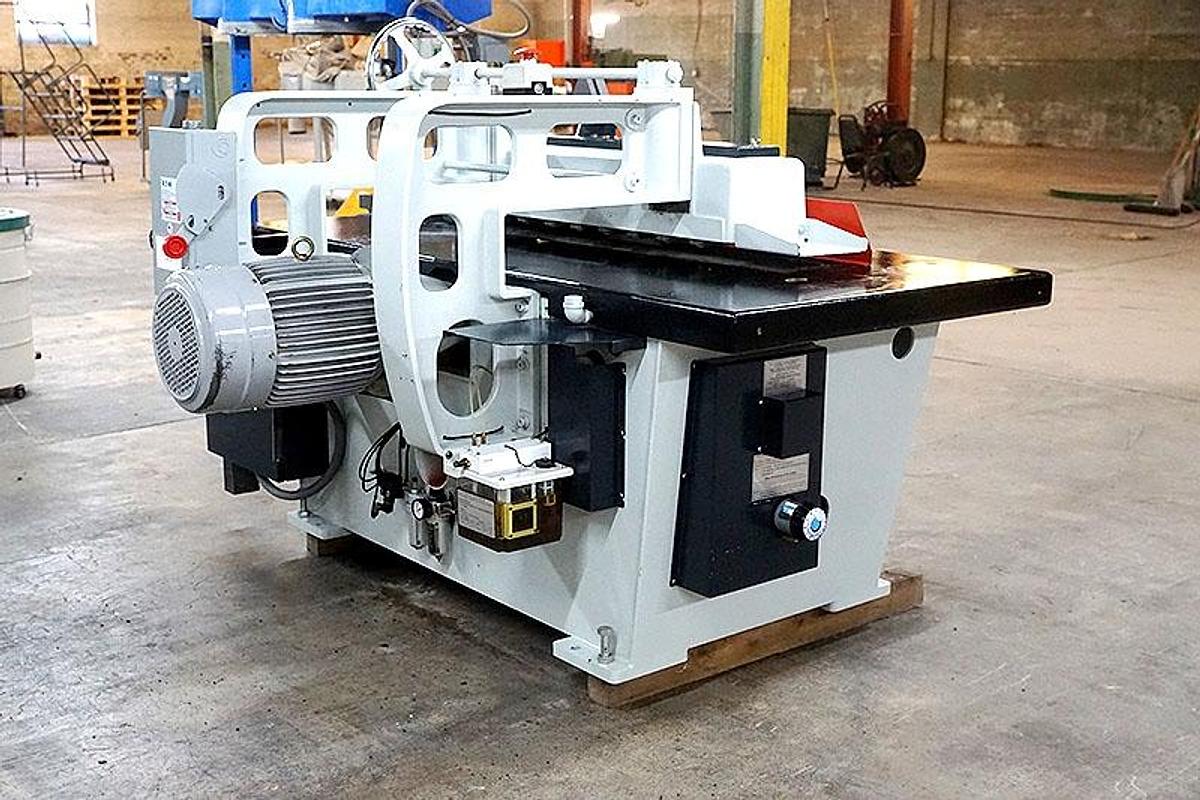

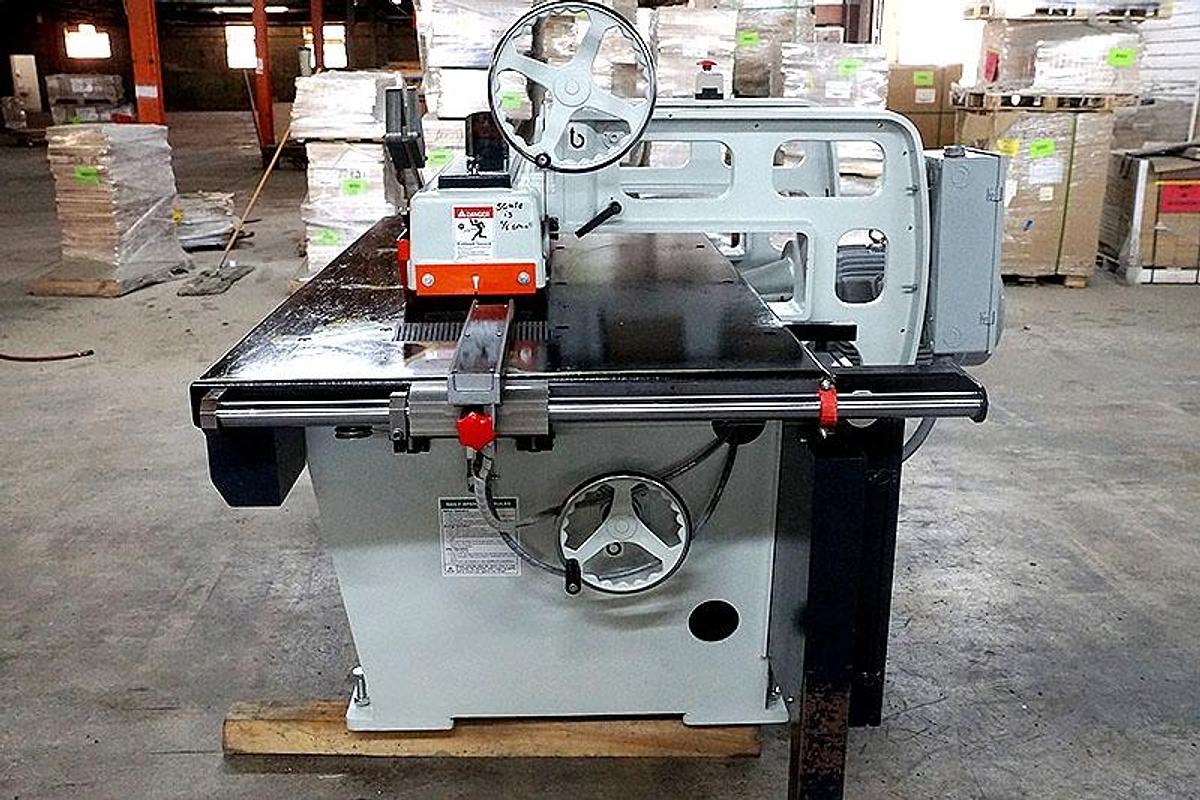

2019 Cantek Cantek R18 18" straight line rip saw

NOTE: Under Contract

Cantek # CANR-18

• 2019
• 20 Hp, 230/460 volt three phase main motor, 60 hz, 52/21 amps
• Slit chain, double track, guideways hardened to Rockwell HRC 60
• Min workpiece length 150 mm (6")
• Max saw blade diameter 355 mm (18")
• Max cutting thickness 75 mm (4.75")
• Saw arbor diameter 50.8 mm (2")
• Feed speed range 33 to 180 ft/min
• Distance from saw blade to column (26")
• Table size 1015 mm x 2000 mm (40" wide x 82 long)
• Table passline height 850 mm (33.46")
• Machine weight 1,700 kg (3,750 Lbs)

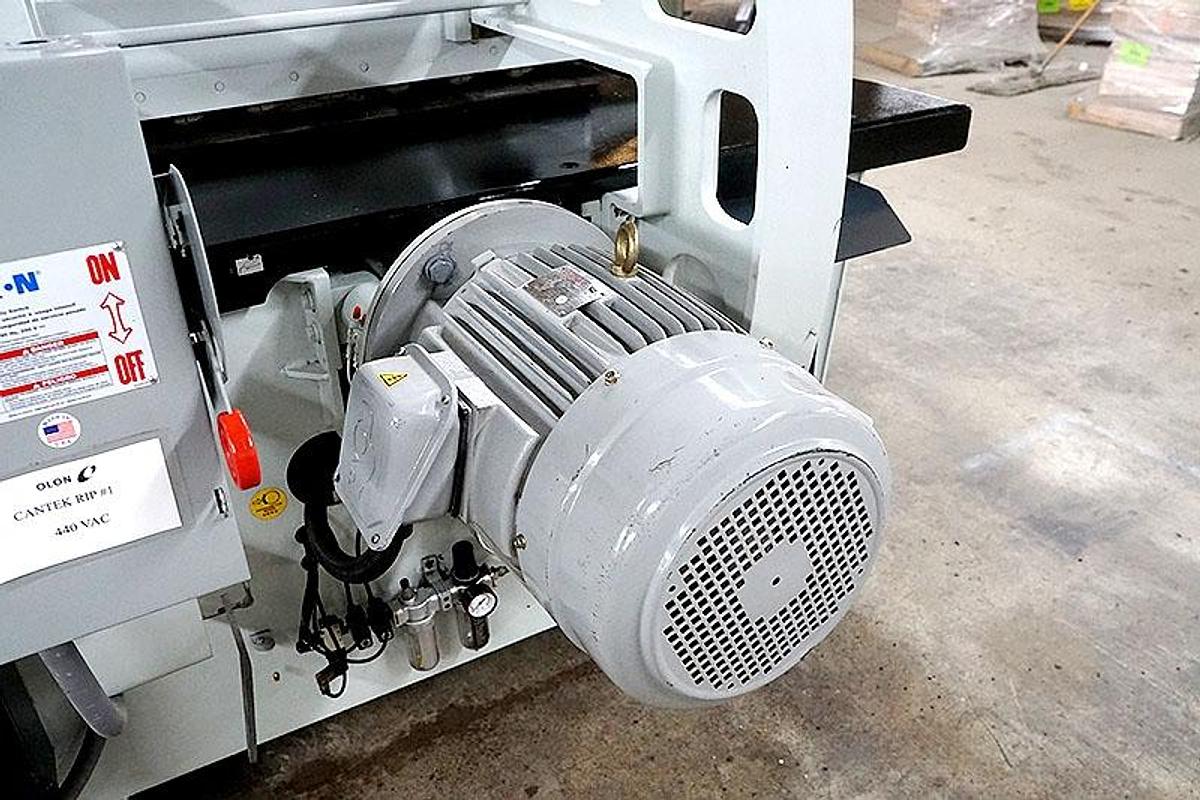

• 20 Hp, 230/460 volt three phase saw drive motor
• 3 Hp, 230/460 volt three phase feedworks drive motor

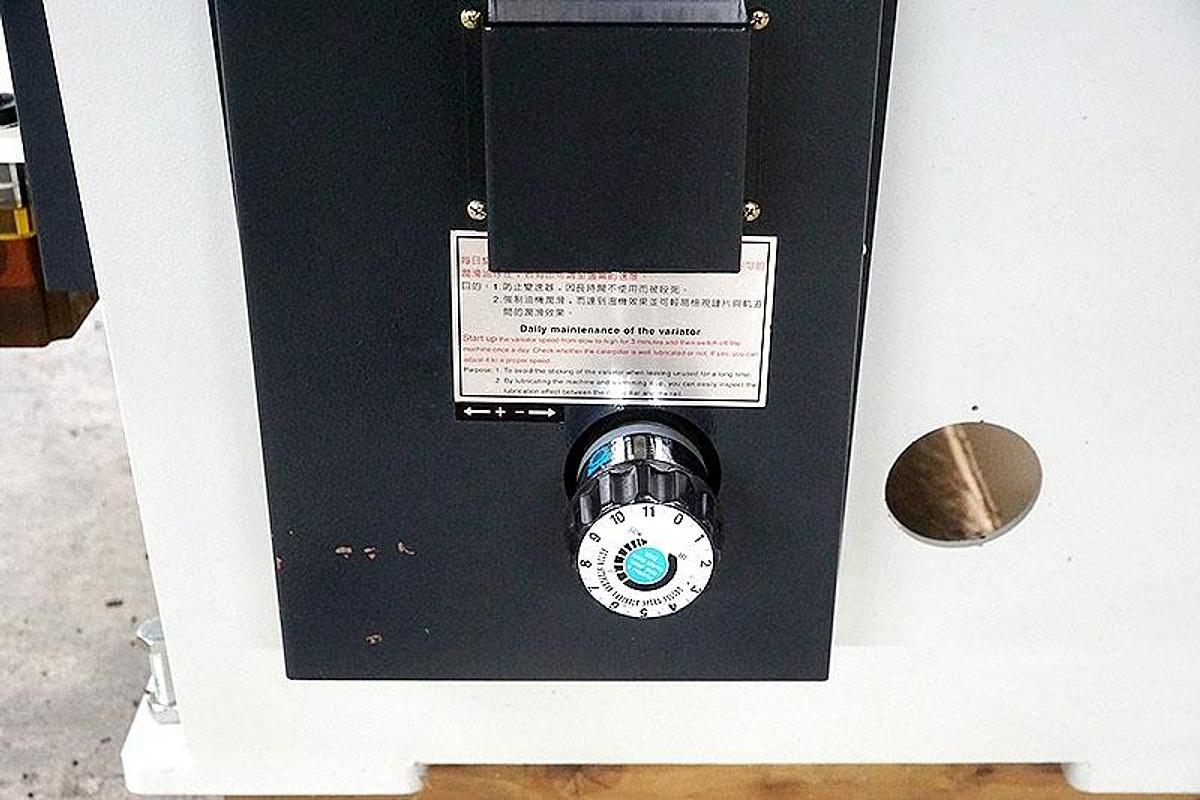

• Adjustable feed speeds with quick change gear box system

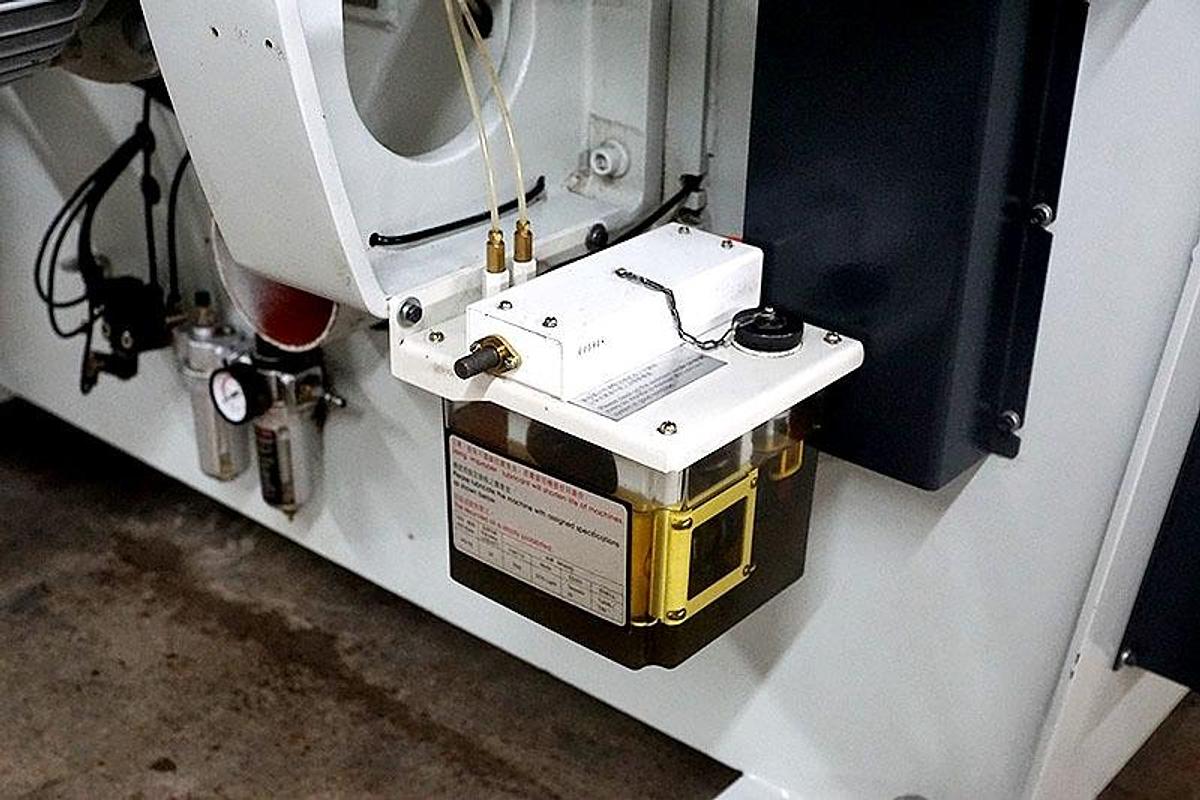

• Automatic chain oiler system
• Adjustable front rip fence
• Double pad table feed chain
• (1) Top infeed anti-kickback fingers
• (8) Top adjustable pressure rollers
• Dust collection outlets (6") bottom, (4") top
• Side push button motor controls
• S/N 05257

Price new today: $29k.
