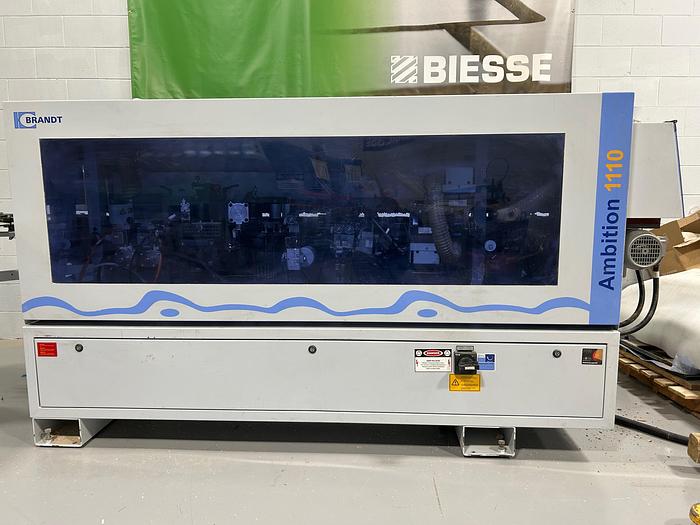

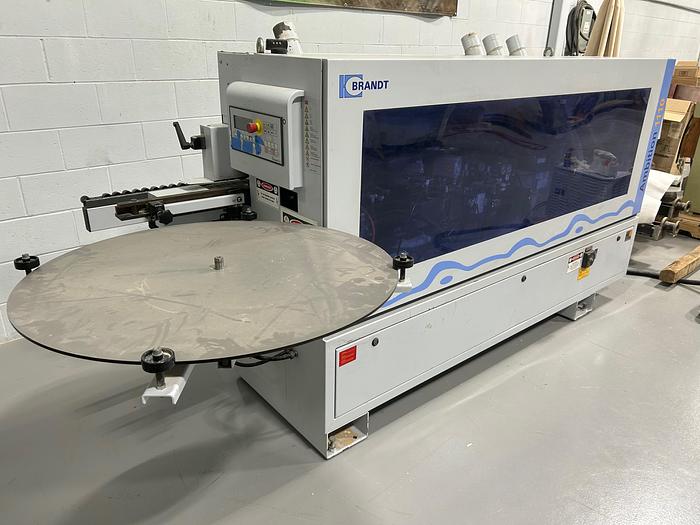

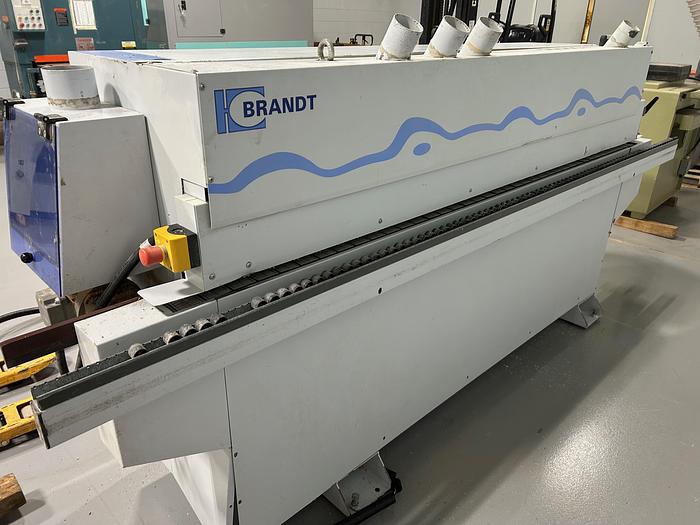

2012 Brandt Ambition KDF-110 Edgebander

Features:

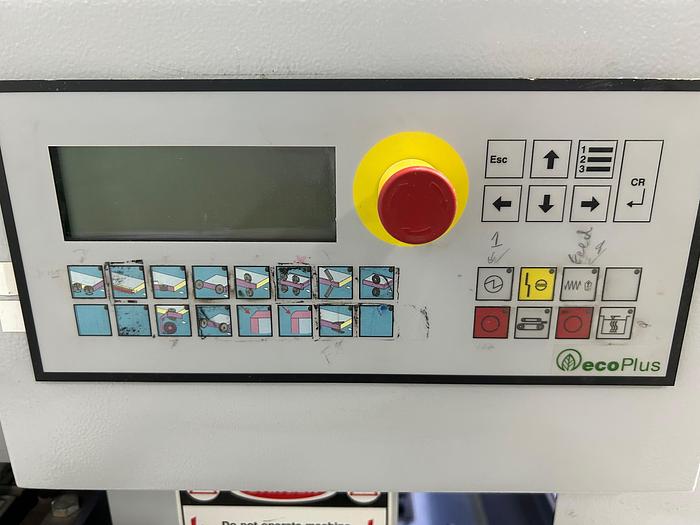

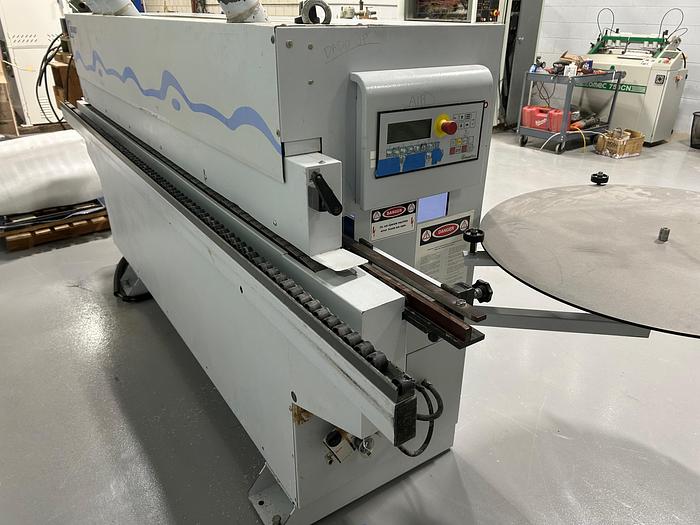

• Electronic Easy Control with backlit LCD display

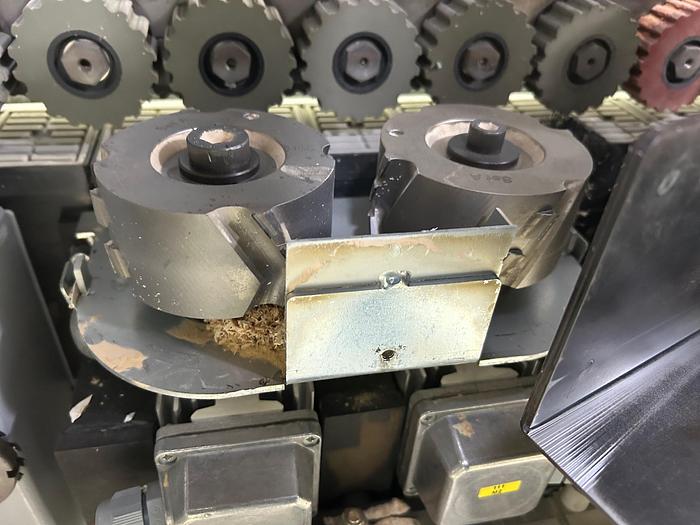

• (2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
• Automatic magazine for strip and coil feeding
• Hot melt glue pot with 12-15 minute heat up time
• Automatic temperature reduction feature (lowers the glue temperature if no panel

is run over a 15 minute span)

• Guillotine for cutting up to 3 mm PVC from the coil
• Pressure station with (1) motorized pressure roller plus (2) additional idle
• 1/4 HP 12 000 RPM double motor end trim .33hp

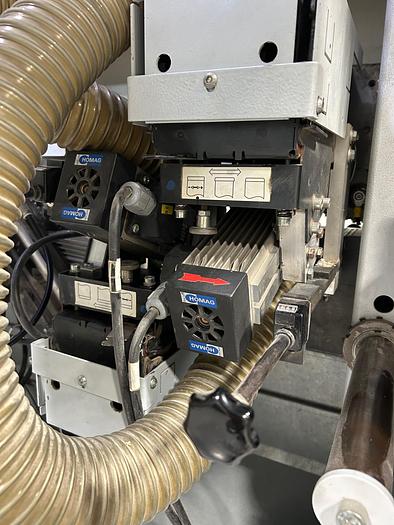

• 12 000 RPM top and bottom trim station equipped with two DFC combination
• straight/radius cutter heads and digital readouts (three different working
• positions: flush trim trimming with overhang and radius/bevel trimming)
• Top and bottom profile quick change scraping unit
• Finish scraping unit 3/4 HP 1-speed feed with speed of 26 FPM
• Digital on top pressure beam for height indication

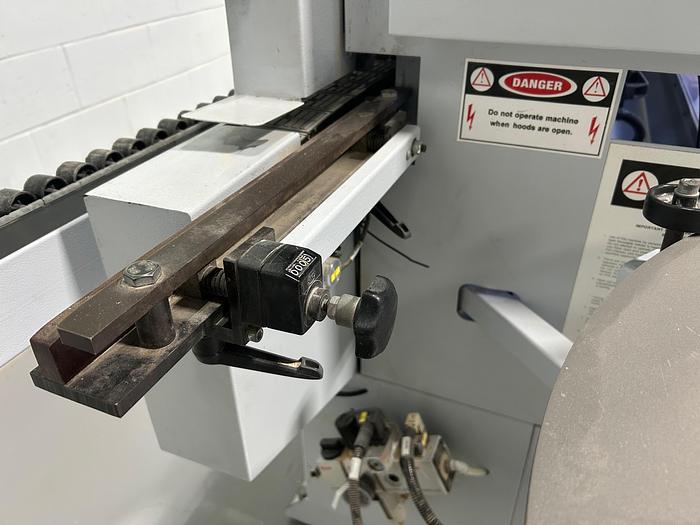

• Adjustable infeed fence with digital readout
• Manual pressure beam for all work stations
• Digital trim adjustments on top and bottom trim station
• 016″ to 1/8″ (3mm) maximum edgebanding thickness capacity (coil or strip)
• Edgeband length: strips minimum 5/16" min. to 2" max. panel thickness
• Minimum panel length: 5-1/2"
• Minimum panel width: 2-3/4"
• Edgeband height: 5/16 to 1-5/8"

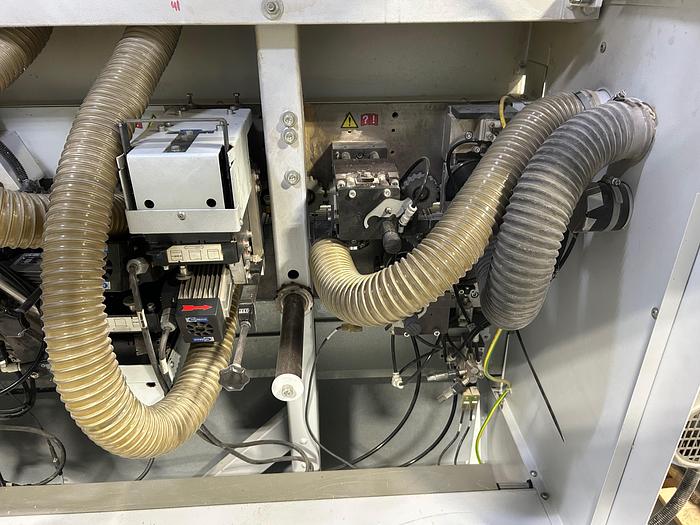

• Dust extraction: (4) 80 mm outlets and (1) 100 mm outlet = 1600 CFM
