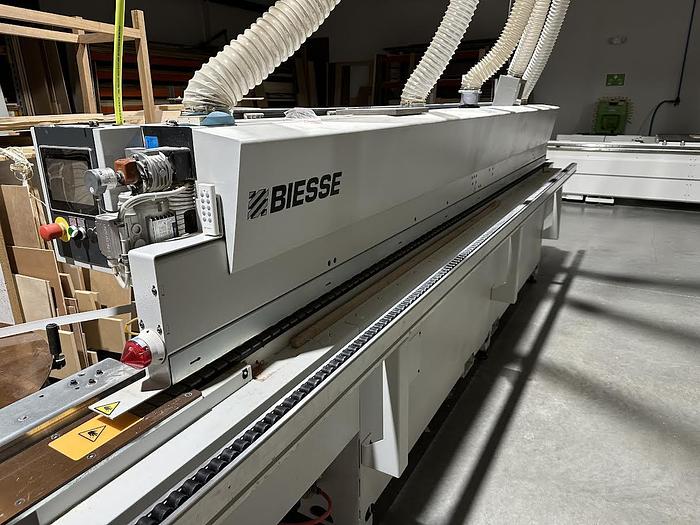

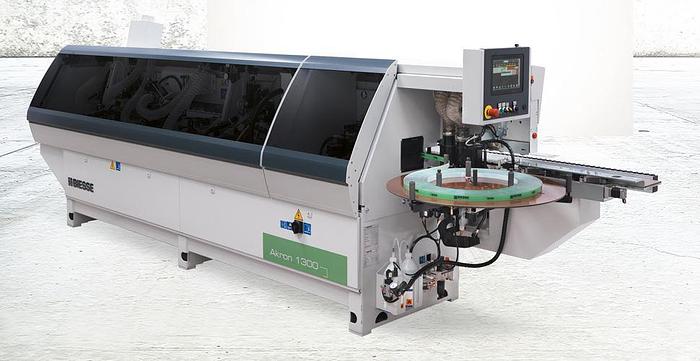

2012 Biesse Akron 1300

One owner, clean Akron 1330 edgebander

Features Servo controls for quick changeover

PLC control with touch screen

Max Panel height 60 mm

PVC / Abs mm 0.4 - 3

Feed speed up to 12 m/min

5mm wood strip capacity

Electronically adjustable working height (motorized pressure beam)

Adjustable Pre- mill fence

2-motor Pre-milling unit with timed intervention

Anti-adhesive group

Large 3mm Coil holder plate

Hot melt Gluing unit for EVA glue

Edge pressure unit with 3 servo adjustable pressure rollers

Two motor end trimming unit with pneumatic bevel control on a linear guide

Top and bottom tilting trimming unit with servo adjustment

Combination radius straight inserts on flush trim motors

Corner Rounding unit with 2 motors

Radius Edge scraper unit with digital adjustment with PLC controls

Glue scraper unit with PLC controls

Buffing unit

More pictures to follow...
