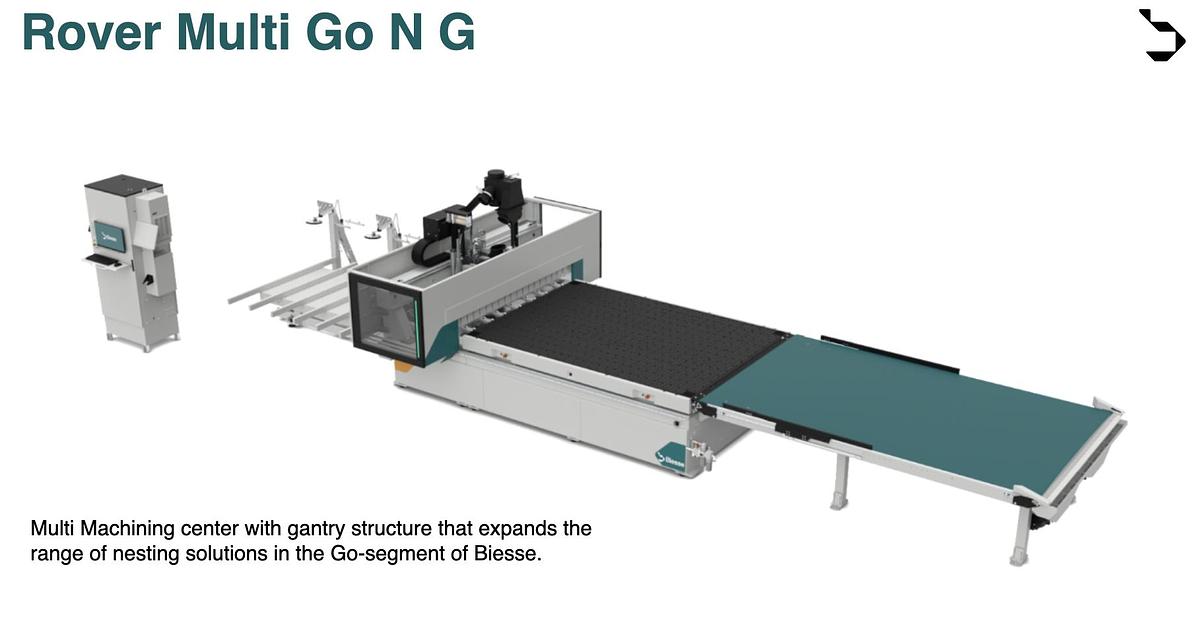

Biesse Rover Multi Go NG CNC router

The Biesse Rover Multi GO NG is a high-performance CNC flat table router designed for precision woodworking applications. It features a robust HSD 12Hp HSK F63 electrospindle and a 10 spindle vertical drill block, offering versatility and efficiency in operation. The 8-position moveable rack tool changer enhances productivity, easily repositioning during the table sweeping cycle. Engineered for precision, the machine includes a tool touch-off device for accurate cutting depth and CNC-controlled dust ports for optimal cleanliness. The helical rack and pinion drive on the X-axis, combined with a precision-ground screw on the Y and Z axes, ensures smooth and accurate movements. The router supports a rapid traverse speed of 60m/min and a maximum Z-axis capacity of 170mm. For user convenience, it is equipped with a 21" touch screen controller running Windows 10, along with B-solid CAD/CAM software. Additional features like automatic lubrication of guideways and air-conditioned control cabinets enhance performance and durability. The machine is also pre-wired for future C-axis expansion, offering scalability for growing production needs.

This Rover Go is available in three (3) sizes: 4' x 8', 5' x10' and 5' x 12'

Plug and play option allows you to add a panel loader and/or outfeed belt for increased production

Features include: (previously known at the Rover K/FT)

• HSD 12Hp HSK F63 electrospindle
• 8 (up to 10) position moveable rack tool changer (drops under table during table sweeping cycle)
• 10 spindle vertical drill block
• C-axis pre-wired to be easily added a later date
• Tool Touch off device for cutting depth
• Infeed scissors lift table integrated into machine loading system
• Air conditioned control cabinet
• Automatic lubrication of guideways
• Helical rack and pinion drive on X
• Precision ground screw on Y and Z axis
• Additional Z axis plate for drill block
• 170mm (6.7") maximum Z axis capacity
• 60m/min rapid traverse speed
• CNC controlled dust ports for the router and drill block
• CNC controlled sweep with integrated dust collection
• Front and rear precision fences on the main router table
• Powered outfeed belt with pneumatic side fences keep the cut parts contained
• 21" touch screen controller with Windows 10
• Mouse and Keyboard
• B-solid CAD/CAM with BNest (1 seat)
• Auto transformer
• 250 M3/hr vacuum pump (2 pumps on the 5' x 10' and 5' x 12' models)
