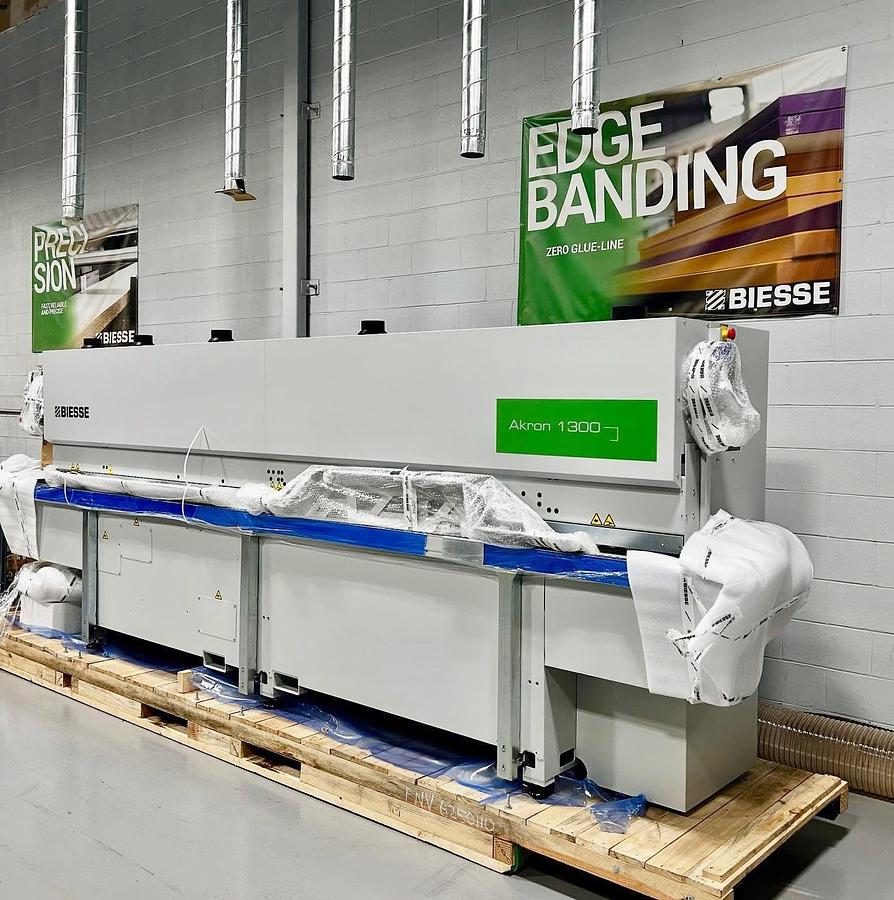

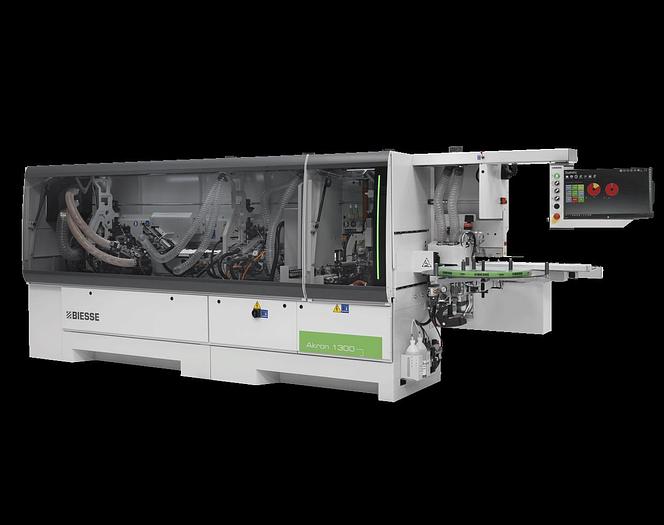

New Biesse Akron 1330J Edgebander

New Akron 1330j Edgebander with Pre-mill and Corner Rounding

Akron 1330J Features include:

• Smart Touch 23" LED display
• Windows operating system
• Sintra HD software for simple and intuitive operator interface
• Automatic start up of the working units by program control

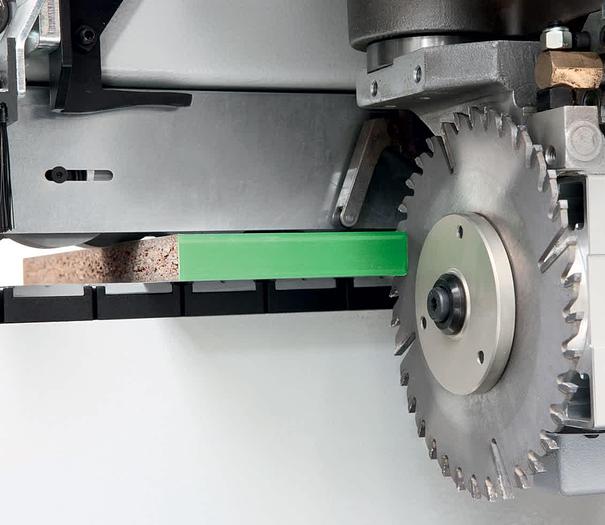

• Pre-milling unit with 2 high frequency motors, 1.8kw each at 12,000rpm
• Premill cutterheads 65MM H z= 3+3
• Anti-adhesive spray unit
• Gluing unit SP03 for EVA glue
• Infra Red lamp placed before gluing unit
• End trimming unit # IT03 on linear guide, with 1 high frequency motor .8kw at 12,000 rpm
• Fine trimming unit RF02 with pro-nesting package; 2 motors at .65kw each at 12,000 rpm

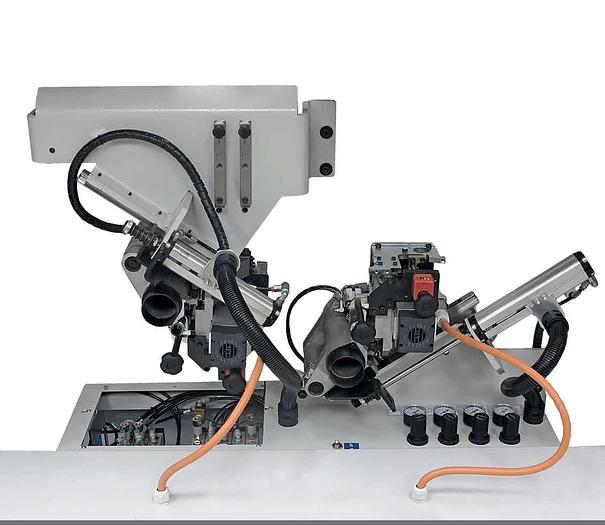

• Corner rounding unit AR02 with 2 high frequency motors .65kw each at 12,000 rpm
• Edge scrape unit RB02 for thick pvc
• Glue scraper unit RC02
• Brushing/buffing unit
• Cleaning unit LPT 02
• Multi profile milling cutters for fine trim; Bevel 25 degrees and R=1.5mm + straight cut
• Multi profile milling cutters for fine trim: Bevel 25 degrees and R=3.0mm + straight cut
• Edge scraper R=1.5mm and 3mm cutters
• Auto Transformer included
• Sophia IoT connection to service center
• Remote diagnostics

60mm max panel height

Max thickness of coil edgeband: 3mm

Max thickness of strips: 5mm

Track speed: 12m/min

Min panel width: 50mm

Glue pot capacity: 2kg
