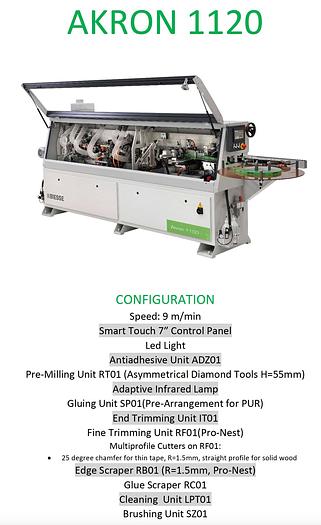

Biesse Akron 1120 Edgebander

•NEW! Biesse Akron 1120 Edgebander

New features on the 2024 models:

• Quartz heater on the infeed fence improves glue bonding to the panel
• LED cabin lights managed by PLC
• Pro-nest system on top flush trim and scraping unit allows you to edgeband over hinge cup holes

Pre-milling with diamond tooling; each motor 1.3Kw at 9600 rpm. Includes automatic timed intervention of the 2 motors

Quick change Hot melt gluing unit with teflon coated glue pot and automatic temperature reduction when inactivity is sensed

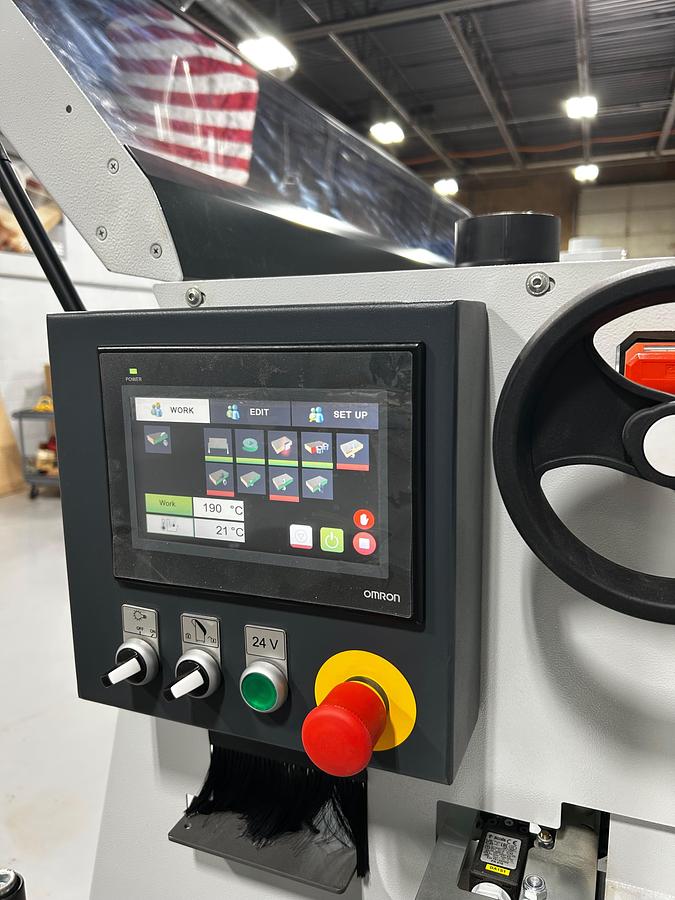

PLC 7" Smart touch controller for machine management and diagnostics

Single motor end trimming unit on linear bearing slide for higher accuracy and longer life; allows for shorter panel gap and higher productivity; .3kw at 9600 rpm with two blades; on-off management from control panel

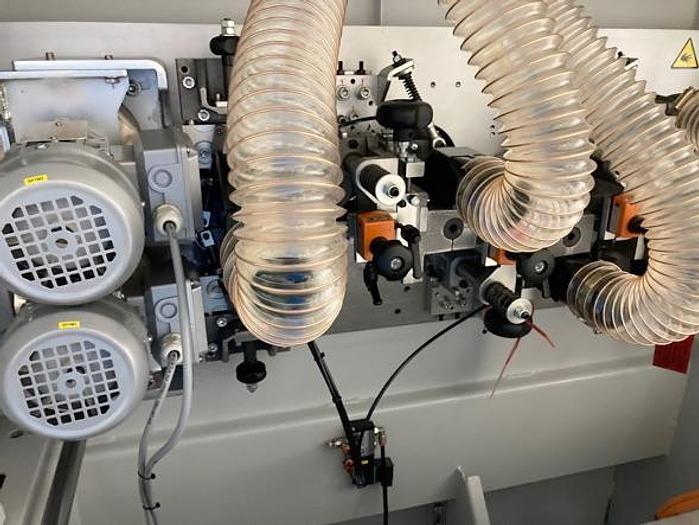

Fine trim unit with two motors, .3kw each at 9600 rpm. Incorporates large copy wheels with digital trim adjustments.

Combination radius, straight cutterheads Multi-profile tooling (25 degree chamfer, 1.5mm radius, straight ) Edge scraper for with 1.5mm radius Glue scraper with 3 sided planar knives for improved finish Digital trim adjustments on each station Buffing brushing unit with two motors, .25kw each

Anti-adhesive unit applies liquid to the top and bottom surface for easy cleaning

Panel Height: 8mm - 50mm

Edgebanding material height: 12MM - 54mm

Max edge thickness in coil: 3mm

Max edge thickness in strips: 5mm

Min panel length: 150mm

Min panel width: 85mm

Track speed: 9m/min

Pneumatic connection: 6.5bar

Control voltage: 24v

Glue pot capacity: 1.2kg

Heat up time (approx) 12 minutes

Multi-tap transformer included for most voltages
